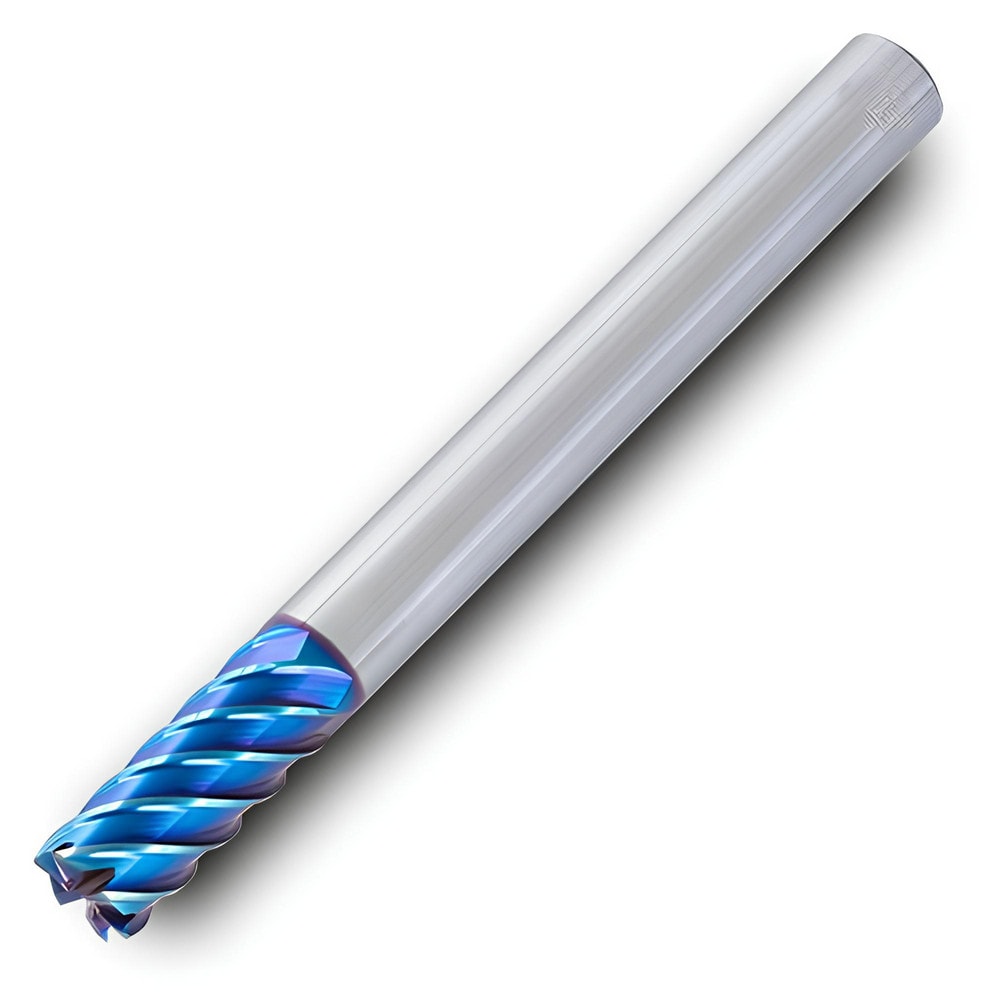

Brand: Ingersoll Cutting Tools / Part #: 5669231
Item #: 99511842
Brand: Ingersoll Cutting Tools
Model #: 5669231
Product Specifications
| Mill Diameter (mm) | 20.00 |
| Corner Radius (mm) | 2.00 |
| Coating/Finish | AlTiCrSiN |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 6 |
| Overall Length (mm) | 140.0000 |
| Length of Cut (mm) | 76.0000 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Flute Direction | Right Hand |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Type | Extra Long |
| Flute Type | Helical |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Centercutting | No |
| Material Removal Type | Finishing |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Neck Diameter (mm) | 20.000 |
| Minimum Helix Angle | 45 |
| Primary Workpiece Material | Hard Material; Steel |
| Primary Workpiece Material Code | P; H |
| Material Grade | IN2203 |
| Series | 48JRJ |
