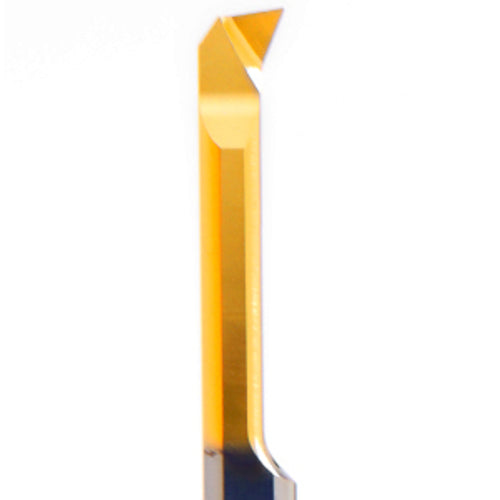

MPL 5 R0.1 L22 BXC
Item #: FF6270600119
Brand: Carmex
Model #: 70600119
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 5 mm |
| Cutting Depth Maximum (CDX) | 1.27 mm |
| Minimum Bore Diameter (DMIN) | 5.08 mm |
| Usable Length (LU) | 22.1 mm |
| Cutting Direction (HAND) | Left Hand |
| Cutting Diameter (DC) | 2.03 mm |
| Coating | TiN |
| Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | PROFILING & BORING |
| Grade | BXC |
| Measurement Type | Metric |
| Applicable Material | Stainless Steel |
| Size | H5 |
| Corner Radius (RE) | 0.1 mm |
| Overall Length (OAL) | 50.8 mm |
