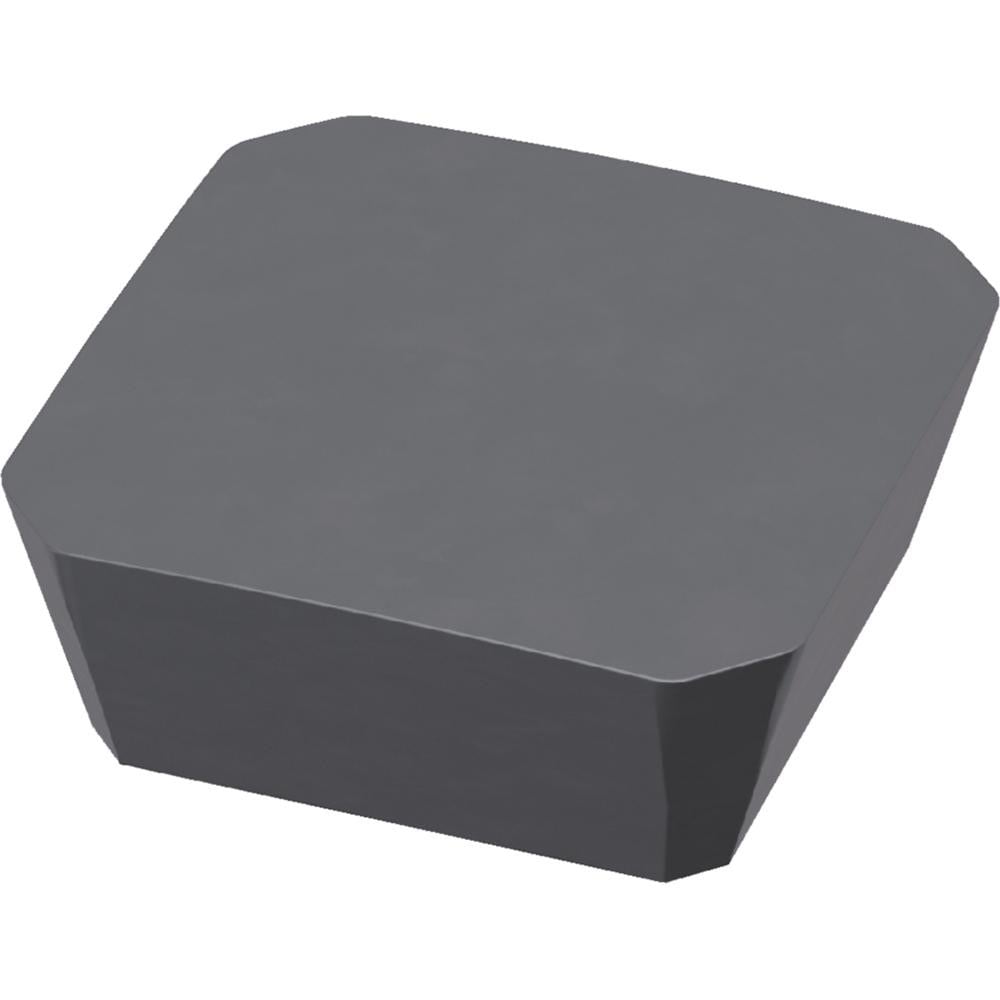

Brand: Widia / Part #: 6296241
Item #: 94003787
Brand: Widia
Model #: 6296241
Product Specifications
| Insert Style | SDEN |
| Insert Size Code | 1204 |
| Insert Size | 12 |
| Insert Material | PCBN |
| Width (Inch) | 1/2 |
| Manufacturer Grade | WBK40U |
| Length (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Insert Hand | Neutral |
| Relief Angle | 15.000 |
| Series | M8090 |
| Coating Process | Uncoated |
| Hole Diameter (Decimal Inch) | 0.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.5000 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Square |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | SDEN1204PDEN4WC |
| Iso Code | SDEN1204PDEN4WC |
| Manufacturers Catalog Number | SDEN1204PDEN4WC |
| Cutter Series Compatibility | M8090?FACE MILL |
| Chip Breaker | None |
| Cutting Direction | Neutral |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Square |
| Insert Holding Method | Clamp |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Single |
| Coating/Finish | Uncoated |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1875 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5000 |
