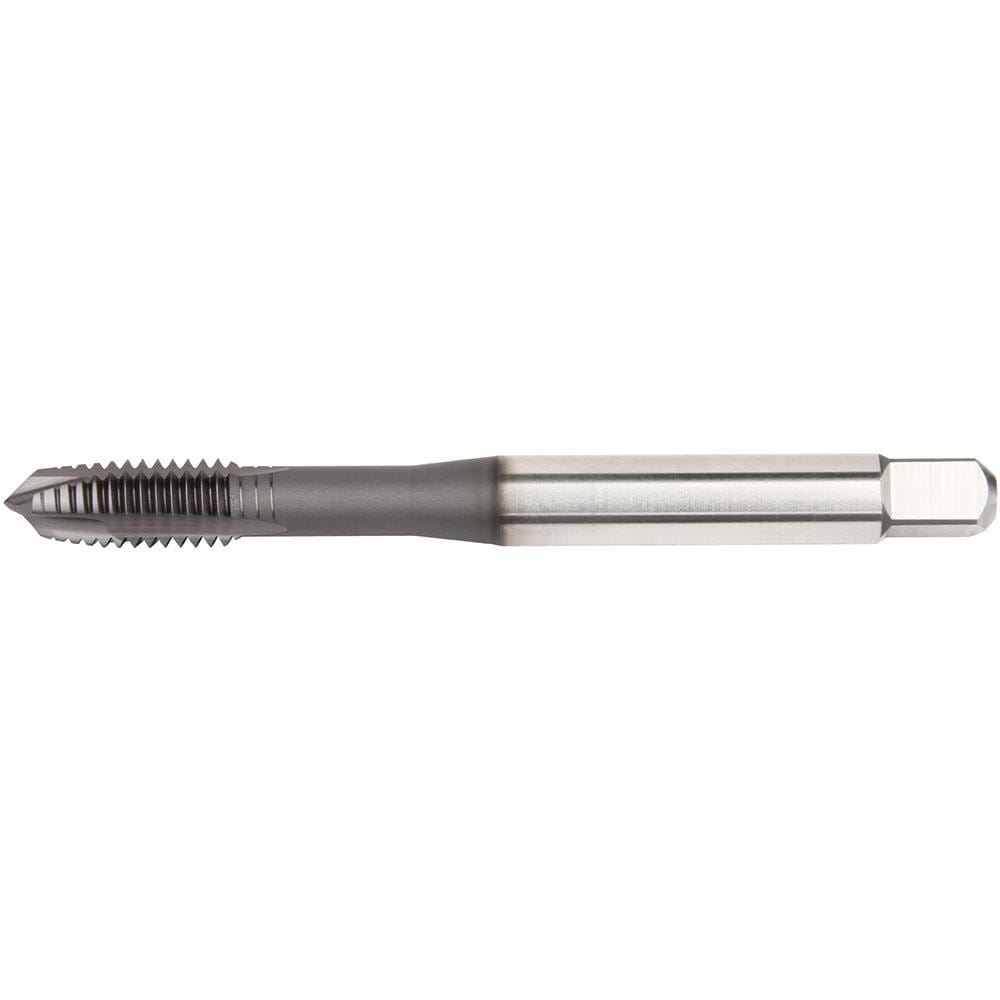

Brand: Widia / Part #: 5472634
Item #: 93303501
Brand: Widia
Model #: 5472634
Product Specifications
| Thread Size (Inch) | #4-40 |
| Number Of Flutes | 2 |
| Chamfer | Plug |
| Thread Limit | 3B |
| Class Of Fit | 3B |
| Coating/Finish | TiN |
| Threads per Inch | 40 |
| Material | High Speed Steel |
| Coolant Through | No |
| Thread Direction | Right Hand |
| Thread Depth (Decimal Inch) | 0.7100 |
| Thread Pitch (Decimal Inch) | 0.0250 |
| Thread Standard | UNC |
| Material Grade | WU41EG |
| Thread Length (Decimal Inch) | 0.3100 |
| Overall Length (Decimal Inch) | 2.2000 |
| Shank Diameter (Decimal Inch) | 0.1378 |
| Square Size (Decimal Inch) | 0.1060 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Series | VT-SPO |
