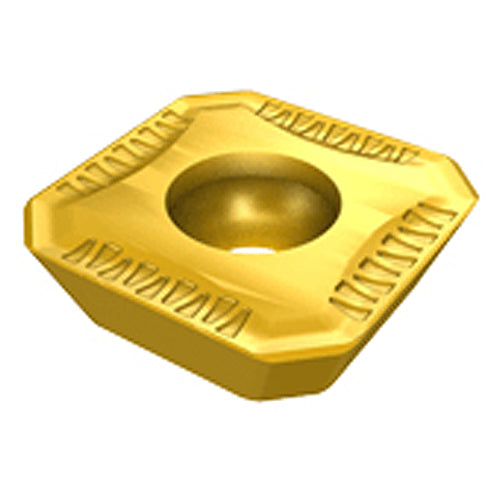

SEMT 12T3AFTN-76 IC328
Item #: EH5667623
Brand: Iscar
Model #: 5667623
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
| Shape | 90° Square |
| Application | | Facing | Milling Inserts | Slanted Shoulder & Chamfer | |
| Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
| Insert Length (INSL) | 0.518″ |
| Cutting Direction (HAND) | Right / Left |
| Depth of Cut Maximum (APMX) | 0.256″ |
| Cutting Edge Material | Carbide |
| Insert Thickness (S) | 0.146″ |
| Tool Type | Single sided Inserts |
| Insert Included Angle (EPSR) | 90 Degrees |
| Minimum Feed per Tooth (fz(min)) | 0.0047 ″/tooth |
| Coating | TiCN |
| Measurement Type | Inch |
| Grade | IC328 |
| Body Material | Carbide |
