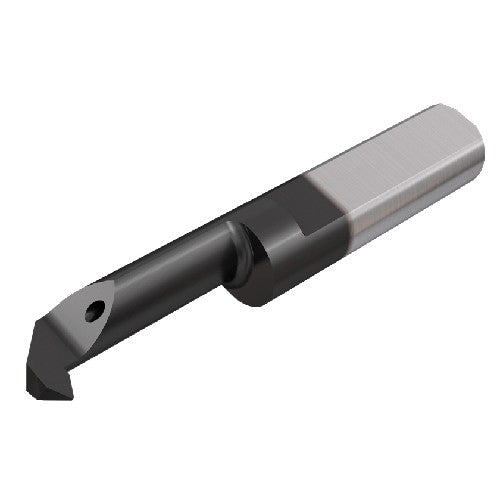

PICCO R 006.5524-15N IC908
Item #: EH563360980
Brand: Iscar
Model #: 3360980
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 0.238″ |
| Functional Width (WF) | 0.091″ |
| Minimum Bore Diameter (DMIN) | 0.236″ |
| Central Flat (CF) | 0.005″ |
| Functional Length (LF) | 1.417″ |
| Body Material | Carbide |
| Reduced Body Diameter Length (LDRED) | 0.551″ |
| Cutting Edge Material | Carbide |
| Cutting Direction (HAND) | Right Hand |
| Tool Type | Solid Threading Tools |
| Coating | TiAlN |
| Measurement Type | Inch |
| Grade | IC908 |
| Threads per Inch Maximum (TPIX) | 24 Threads/" |
| Application | | Threading (Int.) | |
| Threads per Inch Minimum (TPIN) | 16 Threads/" |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Thread Standard | THFT | |
| Front End Width (a) | 0.209″ |
| Thread Form Type (THFT) | VP55 |
