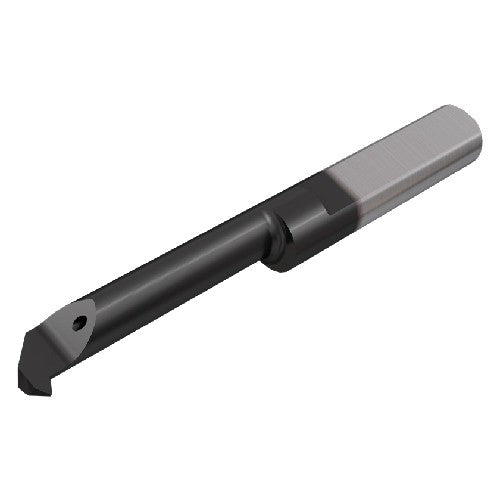

PICCO L 005.0510-15N IC908
Item #: EH563360898
Brand: Iscar
Model #: 3360898
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 0.199″ |
| Functional Width (WF) | 0.075″ |
| Minimum Bore Diameter (DMIN) | 0.189″ |
| Central Flat (CF) | 0.005″ |
| Functional Length (LF) | 1.417″ |
| Body Material | Carbide |
| Reduced Body Diameter Length (LDRED) | 0.551″ |
| Cutting Edge Material | Carbide |
| Cutting Direction (HAND) | Left Hand |
| Tool Type | Solid Threading Tools |
| Coating | TiAlN |
| Measurement Type | Inch |
| Grade | IC908 |
| Thread Pitch (TP) | 1 mm |
| Application | | Threading (Int.) | |
| Thread Standard | THFT | |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Thread Form Type (THFT) | VP60 |
| Front End Width (a) | 0.173″ |
