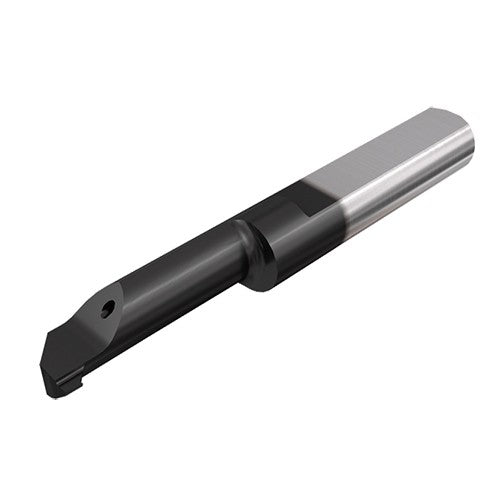

PICCO R 070.5-20N IC908
Item #: EH563360844
Brand: Iscar
Model #: 3360844
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 0.199″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Minimum Bore Diameter (DMIN) | 0.197″ |
| Front End Width (a) | 0.173″ |
| Functional Length (LF) | 1.614″ |
| Cutting Depth Maximum (CDX) | 0.039″ |
| Reduced Body Diameter Length (LDRED) | 0.748″ |
| Functional Width (WF) | 0.075″ |
| Cutting Direction (HAND) | Right Hand |
| Body Material | Carbide |
| Coating | TiAlN |
| Cutting Edge Material | Carbide |
| Grade | IC908 |
| Tool Type | Solid Carbide Turn Tool |
| Application | | Pre Grooving with Chamfer | |
| Measurement Type | Inch |
