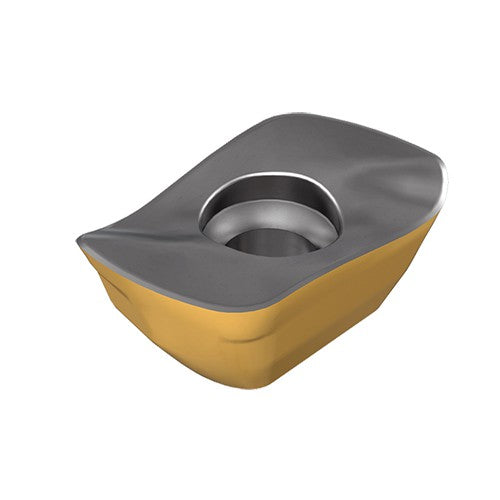

ADKT 1505R8T-FF IC928
Item #: EH5605785
Brand: Iscar
Model #: 5605785
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
| Grade | IC928 |
| Application | | Facing | Fast Feed Milling | Milling Inserts | Rampdown | |
| Shape | 85° Parallelogram |
| Cutting Edge Length (L) | 0.626″ |
| Maximum Feed per Tooth (fz(max)) | 0.059 ″/tooth |
| Insert Length (INSL) | 0.626″ |
| Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.1063″ |
| Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.059″ |
| Minimum Feed per Tooth (fz(min)) | 0.0315 ″/tooth |
| Insert Width (W1) | 0.39″ |
| Measurement Type | Inch |
| Insert Thickness (S) | 0.244″ |
| Body Material | Carbide |
| Coating | TiAlN |
