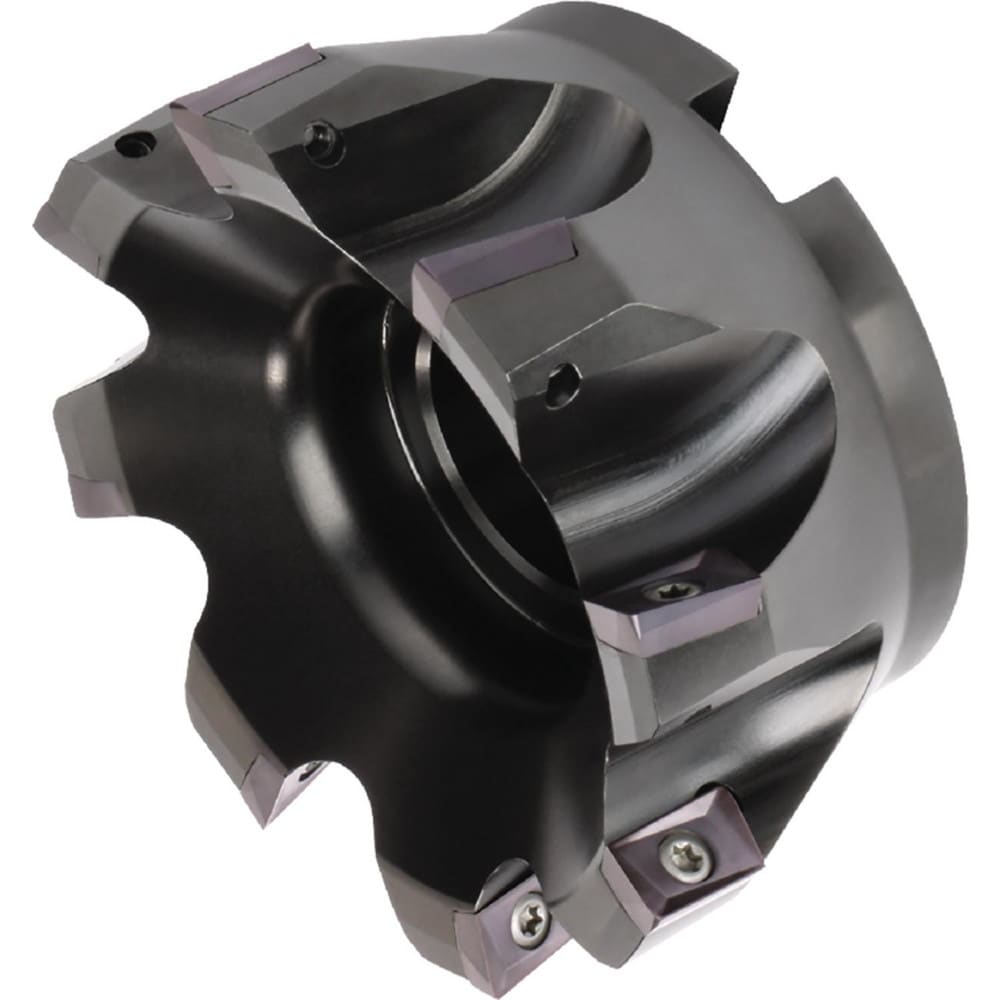

Brand: Widia / Part #: 4056546
Item #: 09795493
Brand: Widia
Model #: 4056546
Product Specifications
| Minimum Cutting Diameter (mm) | 125.00 |
| Maximum Cutting Diameter (mm) | 125.00 |
| Maximum Depth of Cut (mm) | 14.00 |
| Arbor Hole Diameter (mm) | 40.00 |
| Compatible Insert Size Code | XPT.1604.. |
| Maximum Ramping Angle | 0 |
| Cutter Style | M680 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Positive |
| Series | M680 |
| Maximum Body Diameter (mm) | 123.02 |
| Overall Height (Mm - 5 Decimals) | 63.00000 |
| Keyway Width (mm) | 16.48 |
| Hub Diameter (mm) | 89.000 |
| Maximum RPM | 7500.000 |
| Tool Application | Milling; Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Number of Adjustable Pockets | 0 |
| ISO Number | 12396905400 |
| Complete Insert Compatibility | XPT_160412 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | 12396905400 |
| Coolant Through | No |
| Number Of Cutter Inserts | 9 |
| Number Of Flutes | 9 |
