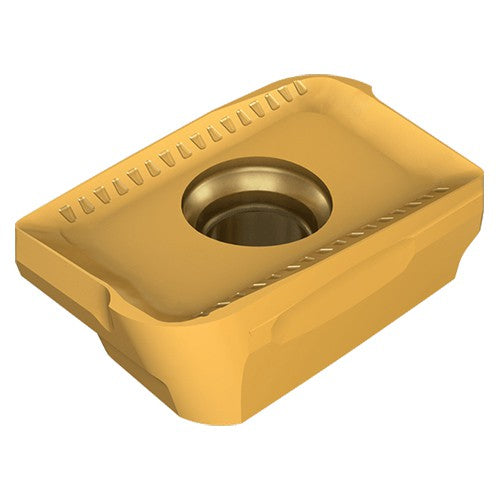

3M AXKT 130412R-PDRMM IC928
Item #: EH5602943
Brand: Iscar
Model #: 5602943
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
| Grade | IC928 |
| Application | | Counter Boring | Facing | Milling Inserts | Shouldering | Slanted Shoulder & Chamfer | |
| Shape | 85° Parallelogram |
| Cutting Edge Length (L) | 0.531″ |
| Maximum Feed per Tooth (fz(max)) | 0.0118 ″/tooth |
| Insert Length (INSL) | 0.531″ |
| Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0472″ |
| Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.472″ |
| Minimum Feed per Tooth (fz(min)) | 0.0059 ″/tooth |
| Insert Width (W1) | 0.331″ |
| Cutting Edge Effective Length (LE) | 0.504″ |
| Insert Thickness (S) | 0.174″ |
| Measurement Type | Inch |
| Coating | TiAlN |
| Body Material | Carbide |
