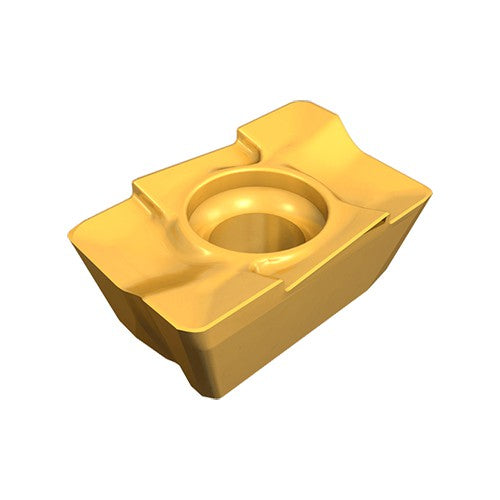

ADMT 1505PDR-HS
Item #: EH5600834
Brand: Iscar
Model #: 5600834
| Product Specifications | |
|---|---|
| Applicable Material | Steel|Stainless Steel|Cast Iron |
| Coating | TiCN |
| Cutting Edge Length (L) | 0.624″ |
| Grade | IC520M |
| Corner Radius (RE) | 0.031″ |
| Shape | 85° Parallelogram |
| Depth of Cut Maximum (APMX) | 0.551″ |
| Maximum Feed per Tooth (fz(max)) | 0.0079 inch/tooth |
| Insert Width (W1) | 0.378″ |
| Cutting Edge Material | Carbide |
| Insert Thickness (S) | 0.222″ |
| Tool Type | Single sided Inserts |
| Wiper Edge Length (BS) | 0.079″ |
| Minimum Feed per Tooth (fz(min)) | 0.0039 inch/tooth |
