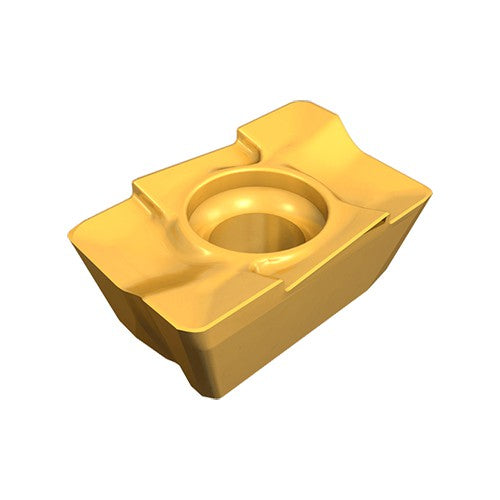

ADMT 1505PDR-HS IC250
Item #: EH5600749
Brand: Iscar
Model #: 5600749
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | |
| Shape | 85° Parallelogram |
| Application | | Bottom Shouldering | Counter Boring | Countersinking | Facing | Milling Inserts | Rampdown | Shouldering | Side Slotting | Slanted Shoulder & Chamfer | Slotting | T Slotting | |
| Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
| Cutting Edge Length (L) | 0.624″ |
| Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.624″ |
| Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0315″ |
| Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.472″ |
| Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Width (W1) | 0.378″ |
| Cutting Edge Effective Length (LE) | 0.551″ |
| Insert Thickness (S) | 0.233″ |
| Measurement Type | Inch |
| Coating | TiCN+TiN |
| Body Material | Carbide |
| Grade | IC250 |
