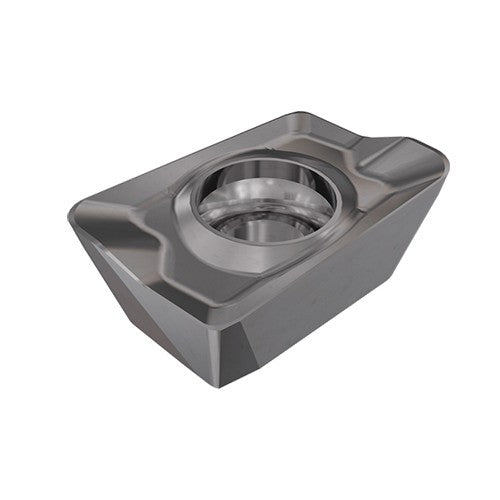

ADKT 150532R-HM
Item #: EH5600637
Brand: Iscar
Model #: 5600637
| Product Specifications | |
|---|---|
| Applicable Material | Steel|Stainless Steel |
| Grade | IC635 |
| Cutting Edge Length (L) | 0.61″ |
| Shape | 85° Parallelogram |
| Corner Radius (RE) | 0.126″ |
| Maximum Feed per Tooth (fz(max)) | 0.0059 inch/tooth |
| Depth of Cut Maximum (APMX) | 0.539″ |
| Cutting Edge Material | Carbide |
| Insert Width (W1) | 0.377″ |
| Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.22″ |
| Minimum Feed per Tooth (fz(min)) | 0.0031 inch/tooth |
| Coating | TiN|TiC|TiN |
