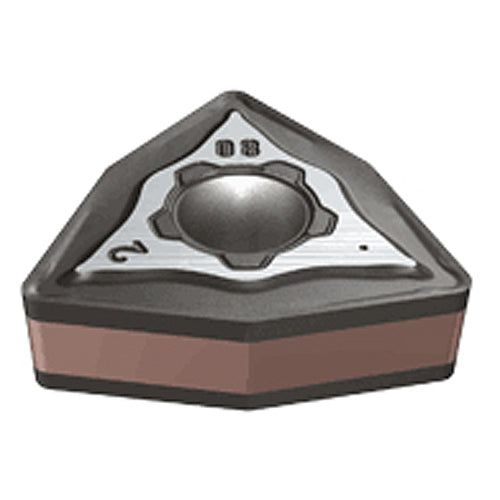

WNMG 431-M3M IC830
Item #: EH553328821
Brand: Iscar
Model #: 3328821
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
| Grade | IC830 |
| Application | | Ext. 80° Trigon 95° Approach | Int. 80° Trigon 95° Approach | ISO Turning Inserts | |
| Tool Type | Turn Negative Inserts |
| Insert Style | WNMG |
| Min D.O.C. | 0.02″ |
| Corner Radius (RE) | 0.0157″ |
| Depth of Cut Maximum (APMX) | 0.197″ |
| Insert Size | 431 |
| Min. Turning Feed (ft(min)) | 0.0047 ″/rev |
| Cutting Edge Length (L) | 0.343″ |
| Max. Turning Feed (ft(max)) | 0.0157 ″/rev |
| Insert Thickness (S) | 0.187″ |
| Chip Breaker Type | M3M |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Body Material | Carbide |
| Coating | AlTiN+TiN |
