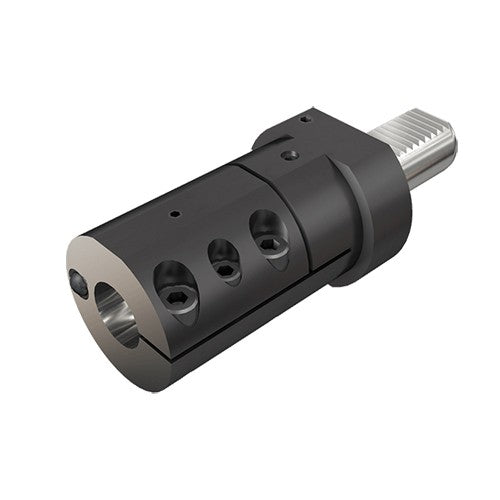

VDI60 AV-D25-JHP
Item #: EH364728846
Brand: Iscar
Model #: 4728846
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 60 mm |
| Body Material | Steel |
| Connection Diameter Workpiece Side (DCONWS) | 25 mm |
| Shank Length (LS) | 94 mm |
| Clamping Length Workpiece Side (LSCWS) | 106 mm |
| Flange Diameter (DF) | 123 mm |
| Body Diameter (BD) | 59 mm |
| Overall Height (OAH) | 85 mm |
| Body Length (LB) | 90 mm |
| Overall Length (OAL) | 214 mm |
| Measurement Type | Metric |
