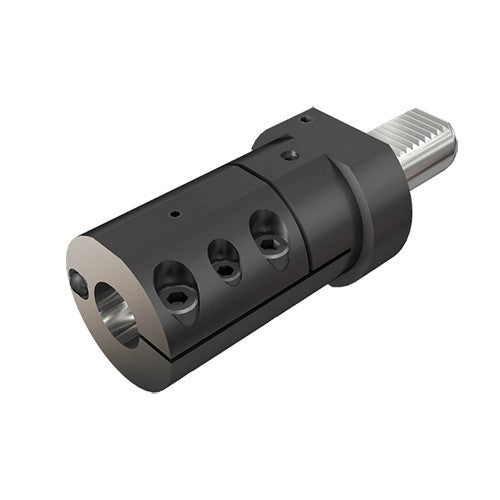

VDI50 AV-D40-JHP
Item #: EH364728844
Brand: Iscar
Model #: 4728844
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 50 mm |
| Body Material | Steel |
| Connection Diameter Workpiece Side (DCONWS) | 40 mm |
| Shank Length (LS) | 78 mm |
| Clamping Length Workpiece Side (LSCWS) | 160 mm |
| Flange Diameter (DF) | 98 mm |
| Body Diameter (BD) | 73 mm |
| Overall Height (OAH) | 70 mm |
| Body Length (LB) | 152 mm |
| Overall Length (OAL) | 260 mm |
| Measurement Type | Metric |
