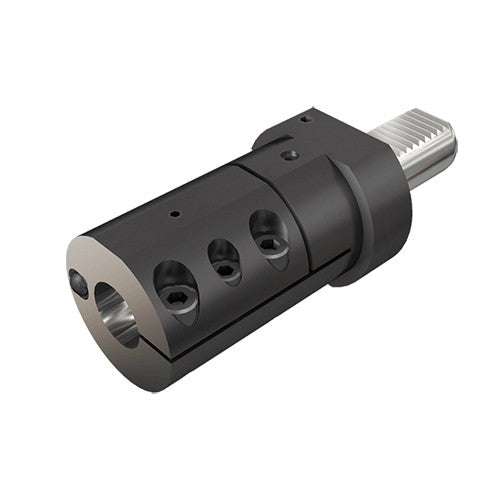

VDI30 AV-D20-JHP
Item #: EH364728833
Brand: Iscar
Model #: 4728833
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 30 mm |
| Body Material | Steel |
| Connection Diameter Workpiece Side (DCONWS) | 20 mm |
| Shank Length (LS) | 55 mm |
| Clamping Length Workpiece Side (LSCWS) | 80 mm |
| Flange Diameter (DF) | 68 mm |
| Body Diameter (BD) | 54 mm |
| Overall Height (OAH) | 56 mm |
| Body Length (LB) | 74 mm |
| Overall Length (OAL) | 151 mm |
| Measurement Type | Metric |
