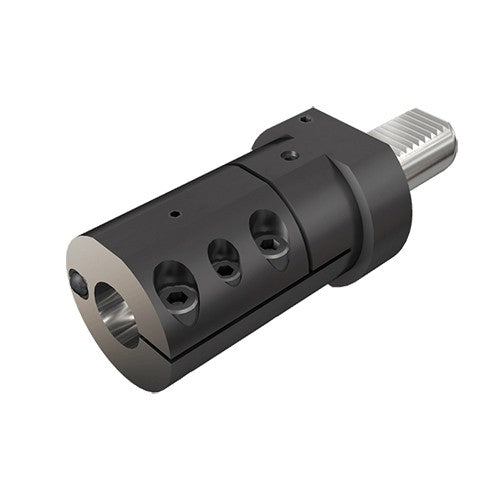

VDI30 AV-D16-JHP
Item #: EH364728722
Brand: Iscar
Model #: 4728722
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 30 mm |
| Body Material | Steel |
| Connection Diameter Workpiece Side (DCONWS) | 16 mm |
| Shank Length (LS) | 55 mm |
| Clamping Length Workpiece Side (LSCWS) | 70 mm |
| Flange Diameter (DF) | 68 mm |
| Body Diameter (BD) | 50 mm |
| Overall Height (OAH) | 56 mm |
| Body Length (LB) | 66 mm |
| Overall Length (OAL) | 143 mm |
| Measurement Type | Metric |
