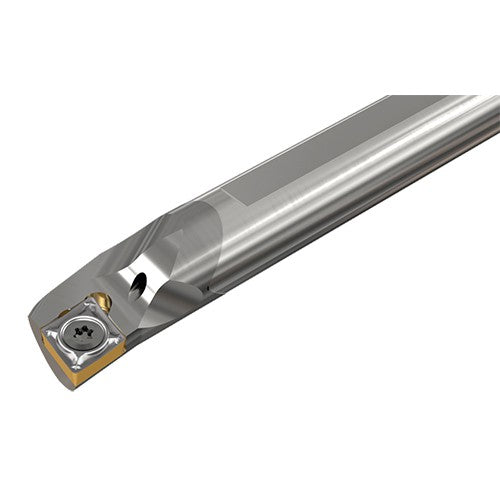

E16R SCLCL-09
Item #: EH3602170
Brand: Iscar
Model #: 3602170
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Rake Angle Axial (GAMP) | 0 Degrees |
| Overall Length (OAL) | 200 mm |
| Rake Angle Radial (GAMF) | -6 Degrees |
| Shank Height (H) | 15 mm |
| Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 11 mm |
| Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 20 mm |
| Cutting Position | Internal |
| Cutting Direction (HAND) | Left Hand |
| Measurement Type | Metric |
| Application | | Int. 80° Diamond 95° Approach | |
