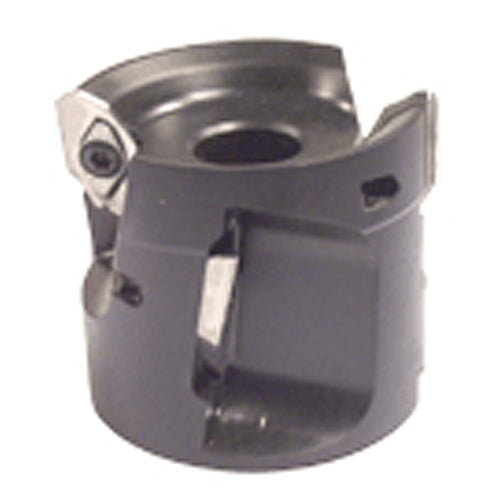

SM D2.50-1.18-1.00-16
Item #: EH3103047
Brand: Iscar
Model #: 3103047
| Product Specifications | |
|---|---|
| Application | | Facing | Rampdown | Shouldering | |
| Master Insert Identification (MIID) | HM90 APCR 160502R-P |
| Cutting Item Count (CICT) | 4 |
| Coolant Supply Property (CSP) | Through Hole |
| Depth of Cut Maximum (APMX) | 1.18″ |
| Arbor Style | A |
| Cutting Diameter (DC) | 2-1/2″ |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 2.36″ |
| Measurement Type | Inch |
| Flute Count (NOF) | 2 |
| Body Material | Steel |
| Overall Length (OAL) | 2.16″ |
| Tool Type | Extnd. flute for Aluminum |
| Cutting Length | 1.18″ |
