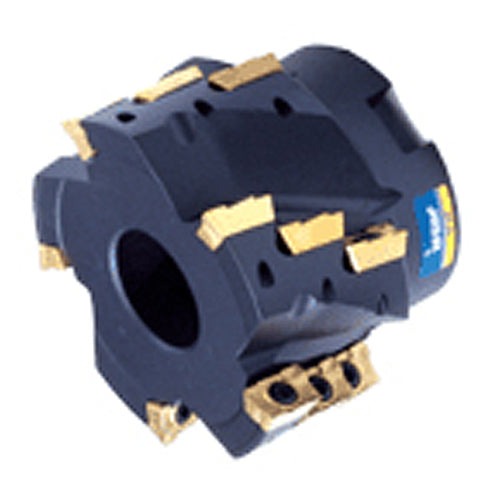

SM D50-25-27-M
Item #: EH3100772
Brand: Iscar
Model #: 3100772
| Product Specifications | |
|---|---|
| Application | | Rampdown | Shouldering | Slotting | |
| Cutting Length | 25 mm |
| Cutting Item Count (CICT) | 6 |
| Master Insert Identification (MIID) | ADKT 1505PDTR |
| Depth of Cut Maximum (APMX) | 25 mm |
| Arbor Style | A |
| Cutting Diameter (DC) | 50 mm |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 47.7 mm |
| Measurement Type | Metric |
| Flute Count (NOF) | 3 |
| Body Material | Steel |
| Overall Length (OAL) | 56 mm |
| Tool Type | 90° Extended flute shell mill |
