Rotor Clip - External Retaining Rings Type: Self Locking System of Measurement: Inch
Item #: 14386551
Brand: Rotor Clip
Model #: TY-21SS
Features and Benefits

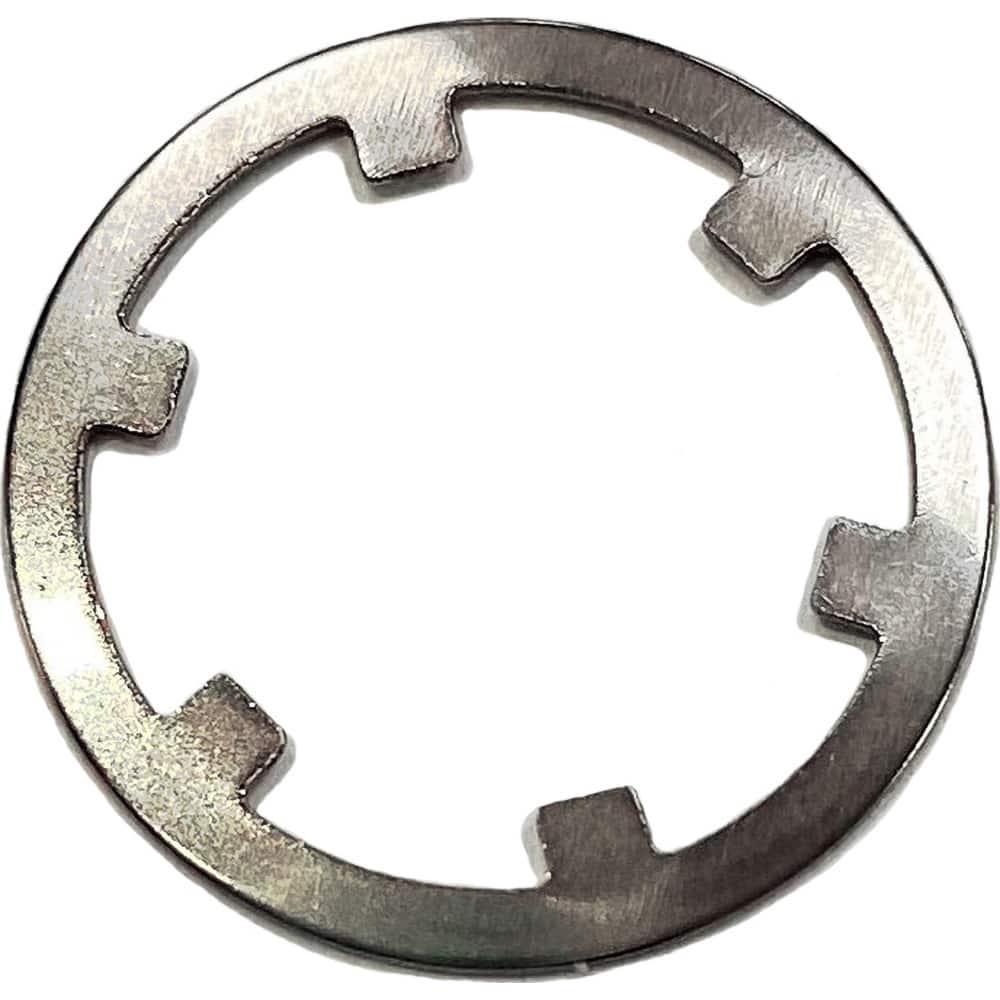

Self-locking external retaining rings have teeth on the inside diameter that secure and lock to the outside of a shaft.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
Product Specifications
External Retaining Rings; Type: Self Locking ; System of Measurement: Inch ; Shaft Diameter (Inch): 7/32 ; Groove Diameter (Decimal Inch): 0.0400 ; Free Diameter (Decimal Inch): 0.2180 ; Free Outside Diameter (Decimal Inch): 0.2200
| Type | Self Locking |
| System of Measurement | Inch |
| Shaft Diameter (Inch) | 7/32 |
| Groove Diameter (Decimal Inch) | 0.0400 |
| Free Diameter (Decimal Inch) | 0.2180 |
| Free Outside Diameter (Decimal Inch) | 0.2200 |
| Military Specification | Does Not Meet Military Specifications |
| Material | Stainless Steel |
| Finish/Coating | Unfinished |
| Material Grade | 15-7 Grade 632 |
| Ring Thickness (Decimal Inch) | 0.0100 |
| Minimum Shaft Diameter (Decimal Inch) | 0.2180 |
| Minimum Shaft Diameter (mm) | 5.56 |
| Maximum Shaft Diameter (Decimal Inch) | 0.2200 |
| Maximum Shaft Diameter (mm) | 5.56 |
| Number of Prongs | 6 |
| Outside Diameter Tolerance (Decimal Inch) | -0.005 to 0.005 |
| Ring Thickness Tolerance (Decimal Inch) | -0.001 to 0.001 |
| Thrust Load at Optional Thickness (Lb.) | 35.00 |
