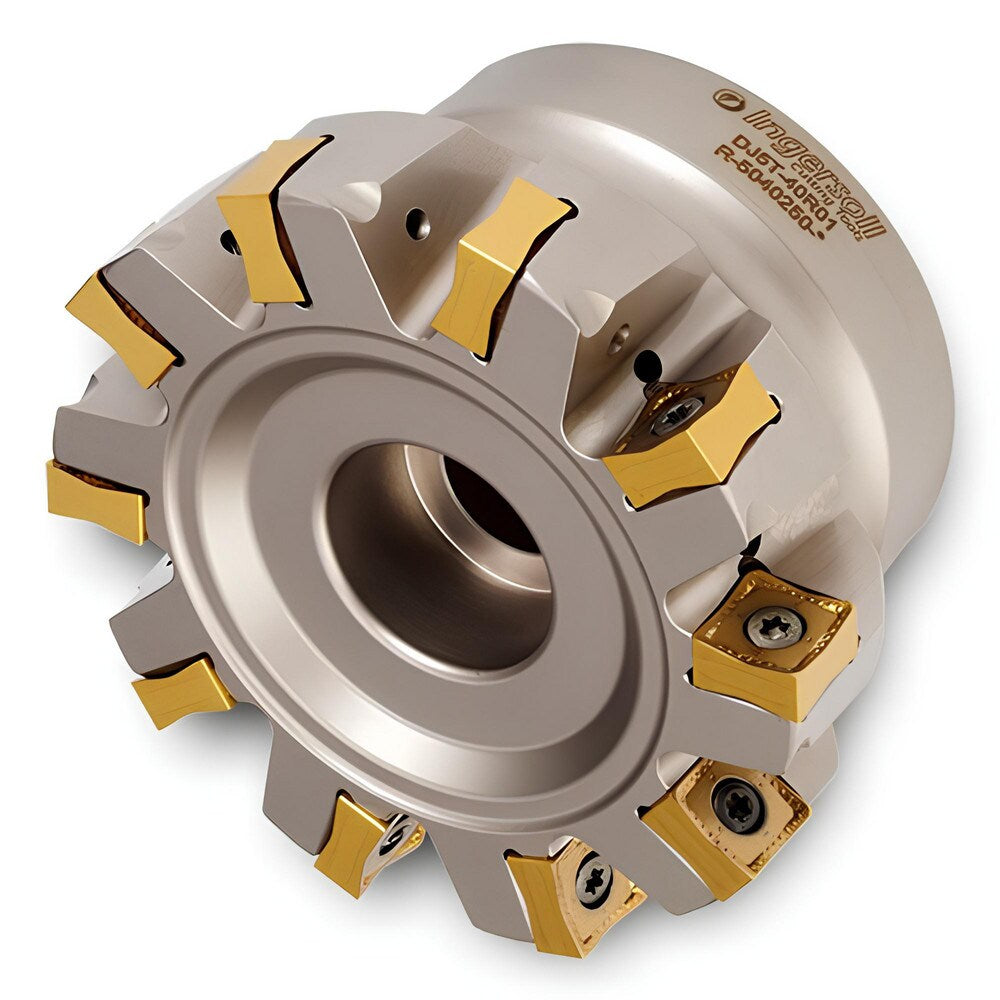

Brand: Ingersoll Cutting Tools / Part #: 3077579
Item #: 96677992
Brand: Ingersoll Cutting Tools
Model #: 3077579
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 3.9370 |
| Minimum Cutting Diameter (Inch) | 3-15/16 |
| Maximum Cutting Diameter (Inch) | 3-63/64 |
| Maximum Cutting Diameter (Decimal Inch) | 3.9843 |
| Maximum Depth of Cut (Decimal Inch) | 0.4488 |
| Arbor Hole Diameter (Decimal Inch) | 1.2598 |
| Lead Angle | 88.000 |
| Compatible Insert Size Code | 1306 |
| Cutter Style | DQ6T |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Negative |
| Series | DQ6T |
| Keyway Width (Decimal Inch) | 0.5669 |
| Overall Height (Mm - 5 Decimals) | 50.00000 |
| Overall Height (Decimal Inch) | 1.9685 |
| Pitch Type | Normal |
| Tool Application | Facing; Shouldering |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Complete Insert Compatibility | SNGU1306 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | DQ6T100R00 |
| Number Of Cutter Inserts | 8 |
| Coolant Through | Yes |
| Number Of Flutes | 8 |
