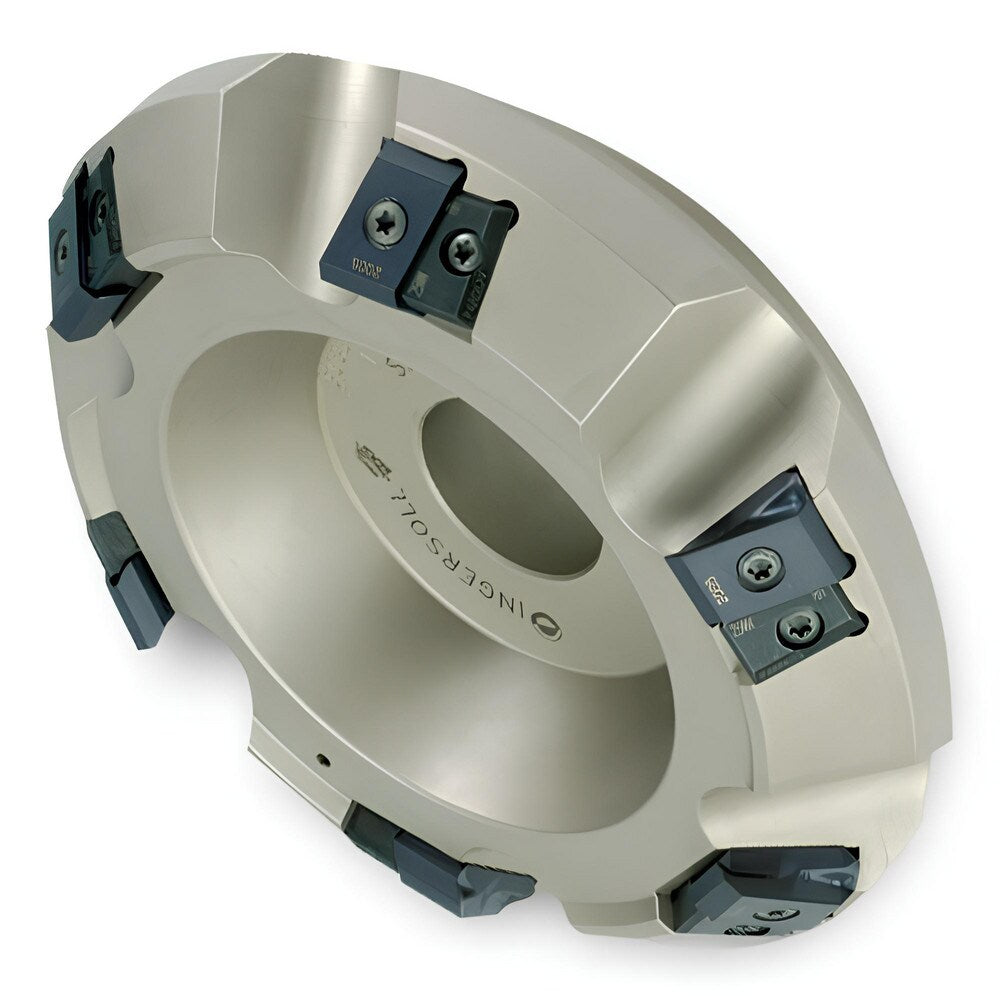

Brand: Ingersoll Cutting Tools / Part #: 3024675
Item #: 51871648
Brand: Ingersoll Cutting Tools
Model #: 3024675
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 4.0000 |
| Minimum Cutting Diameter (Inch) | 4 |
| Maximum Cutting Diameter (mm) | 128.78 |
| Maximum Cutting Diameter (Decimal Inch) | 5.0700 |
| Maximum Depth of Cut (Decimal Inch) | 0.5300 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Lead Angle | 45.000 |
| Compatible Insert Size Code | 436 |
| Cutter Style | SN2R |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Negative |
| Series | SN2R |
| Keyway Width (mm) | 16.00 |
| Keyway Width (Decimal Inch) | 0.6300 |
| Overall Height (Inch) | 2-3/8 |
| Overall Height (Decimal Inch) | 2.3750 |
| Maximum Body Diameter (Decimal Inch) | 5.2500 |
| Maximum Body Diameter (mm) | 133.35 |
| Pitch Type | Coarse |
| Tool Application | Chamfering; Facing |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Complete Insert Compatibility | DPM436.. |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | SN2R-04R01 |
| Number Of Cutter Inserts | 5 |
| Coolant Through | No |
| Number Of Flutes | 5 |
