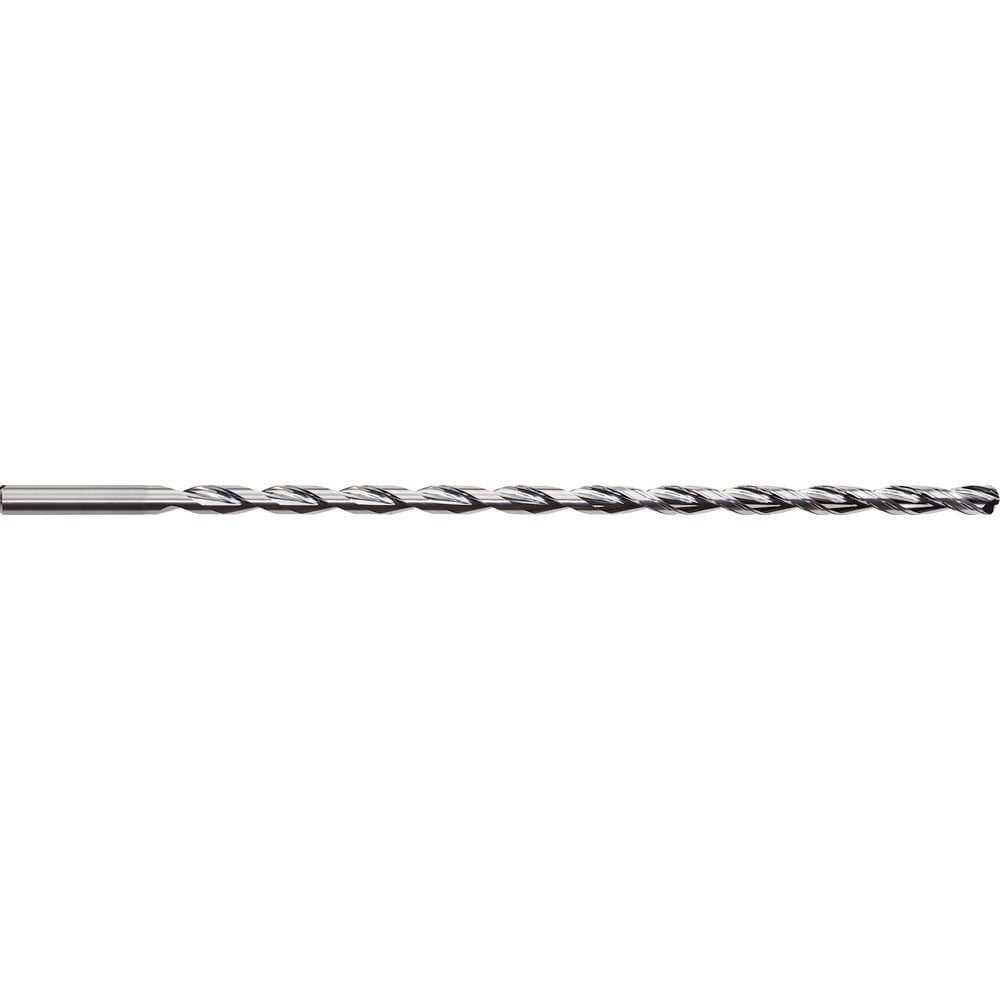

Brand: Guhring / Part #: 9065170080000
Item #: 98618788
Brand: Guhring
Model #: 9065170080000
Product Specifications
| Drill Bit Size (mm) | 8.00 |
| Overall Length (mm) | 263.0000 |
| Flute Length (mm) | 223.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | Uncoated |
| Drill Point Angle | 135 |
| Shank Type | Cylindrical |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Series | 6517 |
| Point Type | RT100 T |
| Cutting Direction | Right Hand |
| Tool Application | Deep Hole Drilling |
| Spiral Type | Regular Spiral |
| Drill Bit Diameter Tolerance | H7 |
| Number Of Flutes | 2 |
| Primary Workpiece Material | Aluminum |
| Drill Bit Size (Decimal Inch) | 0.3150 |
| Shank Diameter (mm) | 8.0000 |
| Shank Length (mm) | 36.000 |
| Flute By Diameter Ratio | 25xD |
| Maximum Drilling Depth (mm) | 214.00 |
