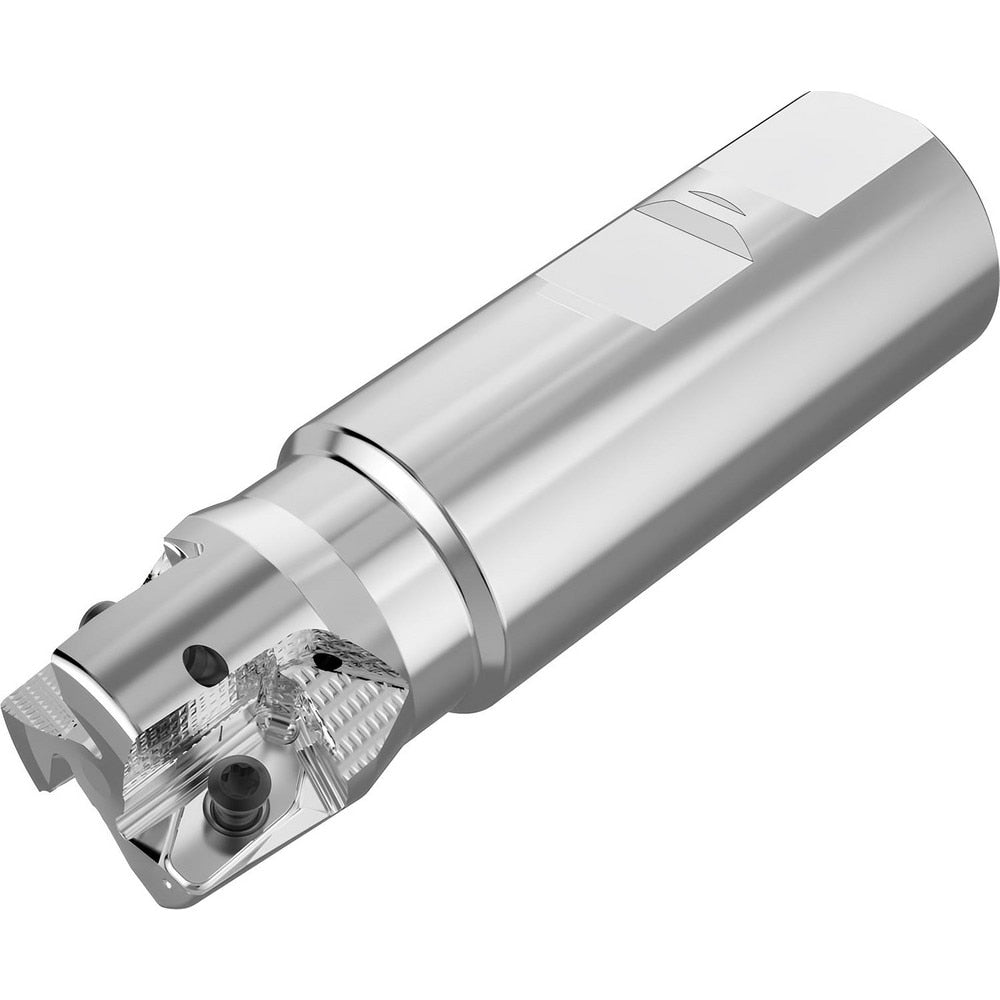

Brand: Seco / Part #: 10107617
Item #: 54041595
Brand: Seco
Model #: 10107617
Product Specifications
| Minimum Cutting Diameter (mm) | 32.00 |
| Maximum Cutting Diameter (mm) | 32.00 |
| Maximum Depth of Cut (mm) | 15.00 |
| Cutter Style | R217.64 |
| Shank Type | Weldon Flat |
| Shank Diameter (mm) | 32.0000 |
| Maximum Ramping Angle | 0.35 |
| Insert Holding Method | Screw |
| Overall Length (mm) | 110.0000 |
| Tool Material | Stainless Steel |
| Series | R217.64 |
| Flute Type | Straight |
| Lead Angle | 90 |
| Shank Length (mm) | 73.000 |
| Head Length (mm) | 37.00 |
| Maximum RPM | 11400.000 |
| Tool Application | Shouldering |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| End Mill Type | Indexable Square Shoulder End Mill |
| Rake | Negative |
| Complete Insert Compatibility | ZOMX1607 |
| Insert Compatibility | ZOMX1607 |
| Hand of Holder | Right Hand |
| Multi-Use Tool | Yes |
| ISO Number | R217.64-3232.3-ZO16-3A |
| Number of Inserts Included in Order | 0 |
| Usable Length (mm) | 37.000 |
| Number Of Flutes | 3 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
