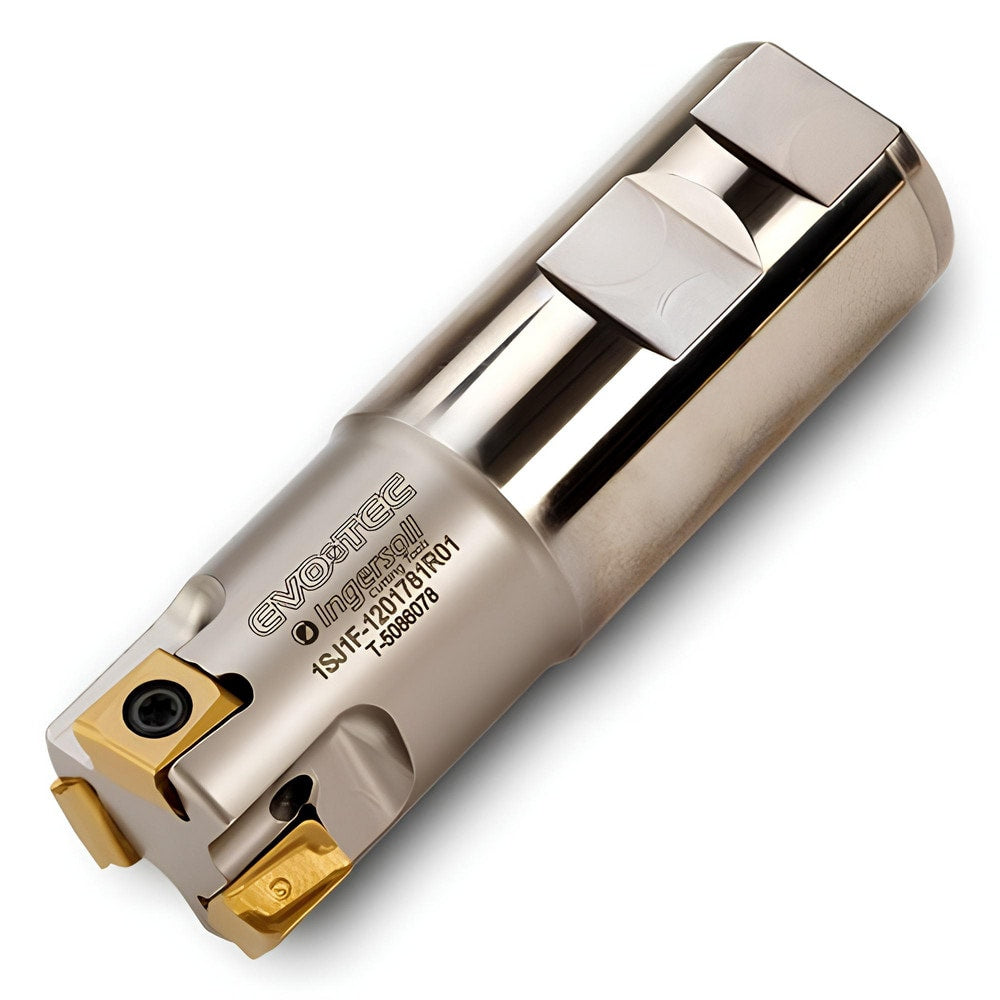

Brand: Ingersoll Cutting Tools / Part #: 3030640
Item #: 99916652
Brand: Ingersoll Cutting Tools
Model #: 3030640
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 1.5000 |
| Minimum Cutting Diameter (Inch) | 1-1/2 |
| Maximum Cutting Diameter (Decimal Inch) | 1.5000 |
| Maximum Cutting Diameter (Inch) | 1-1/2 |
| Maximum Depth of Cut (mm) | 10.67 |
| Maximum Depth of Cut (Decimal Inch) | 0.4200 |
| Cutter Style | 1SJ1F |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Maximum Ramping Angle | 1.5 ? |
| Insert Holding Method | Screw |
| Overall Length (mm) | 152.4000 |
| Overall Length (Decimal Inch) | 6.0000 |
| Tool Material | Steel |
| Series | 1SJ1F |
| Flute Type | Spiral |
| Lead Angle | 90 |
| Shank Length (Inch) | 2-1/4 |
| Shank Length (Decimal Inch) | 2.2500 |
| Head Length (Inch) | 3-3/4 |
| Head Length (Decimal Inch) | 3.7500 |
| Tool Application | Facing; Shouldering |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| End Mill Type | Shoulder Square End Mill |
| Rake | Negative |
| Complete Insert Compatibility | DGx314..; ZGx314.. |
| Insert Compatibility | DGx314..; ZGx314.. |
| Hand of Holder | Right Hand |
| Multi-Use Tool | Yes |
| Manufacturers Catalog Number | 1SJ1F-1503781R01 |
| Usable Length (mm) | 95.250 |
| Number Of Flutes | 3 |
| Usable Length (Decimal Inch) | 3.7500 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
