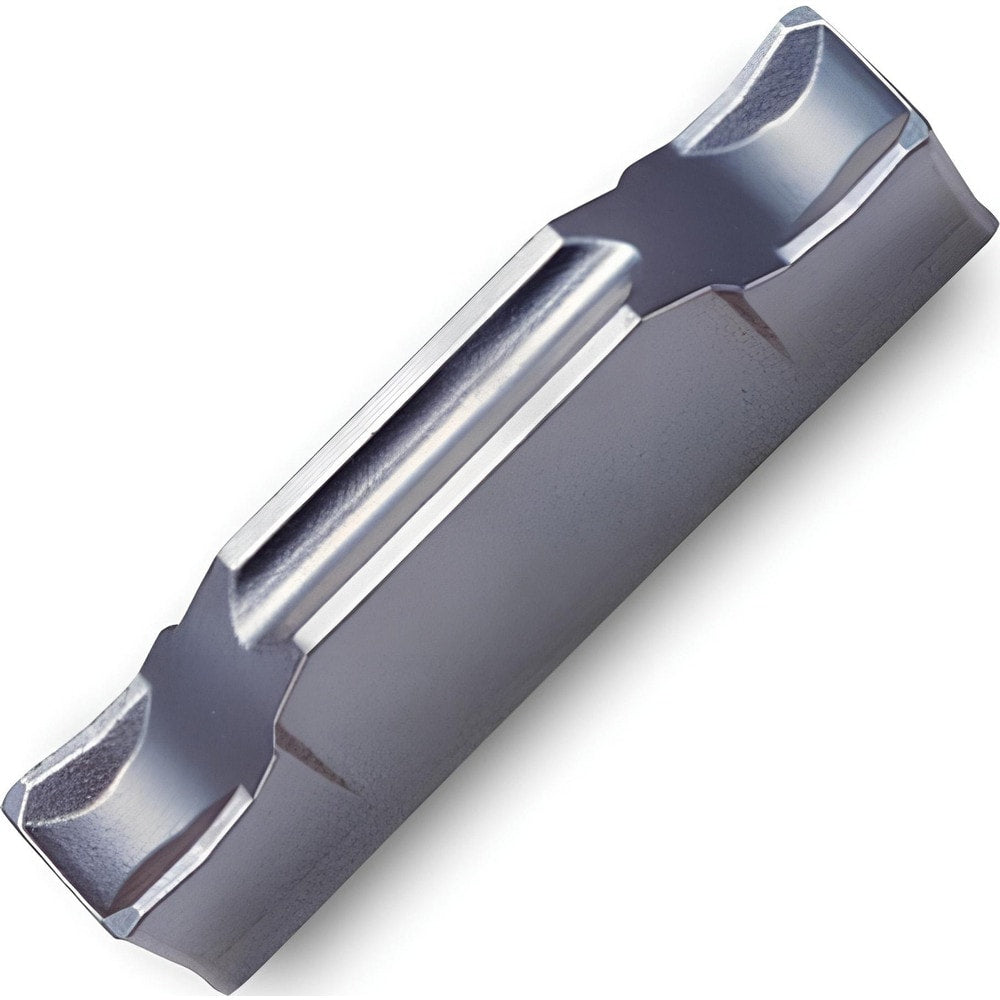

Brand: Ingersoll Cutting Tools / Part #: 5740094
Item #: 99513848
Brand: Ingersoll Cutting Tools
Model #: 5740094
Product Specifications
| Insert Style | TDC |
| Insert Size Code | 4 |
| Insert Size | 4 |
| Insert Material | Cermet |
| Manufacturer Grade | CT3000 |
| Cutting Width (Inch) | 5/32 |
| Maximum Depth of Cut (Decimal Inch) | 0.7480 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Cutting Height (Decimal Inch) | 0.1850 |
| Corner Radius (Decimal Inch) | 0.0120 |
| Lead Angle | 0.000 |
| Rake | Positive |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Parting |
| Series | TDC |
| Coating Process | Uncoated |
| Overall Length (Decimal Inch) | 0.7900 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Ansi Code | TDC4 |
| Relief Angle | 7 |
| Maximum Corner Radius (Decimal Inch) | 0.0120 |
| Manufacturers Catalog Number | TDC4 CT3000 |
| Overall Width (Inch) | 5/32 |
| Insert Thickness (Decimal Inch) | 0.1850 |
| Maximum Groove Width (mm) | 3.99 |
| Chip Breaker | C |
| Insert Seat Size | 4 |
| Style | TDC |
| Insert Height (Decimal Inch) | 0.1850 |
| Full Radius | No |
| Coating Classification | Uncoated |
| Hole Diameter (Decimal Inch) | 0.0000 |
| Coating/Finish | Uncoated |
| Number Of Cutting Edges | 2 |
| Single Or Double End | Double |
| Groove Width (mm) | 3.99 |
| For Use With | Grooving Toolholder; Parting |
