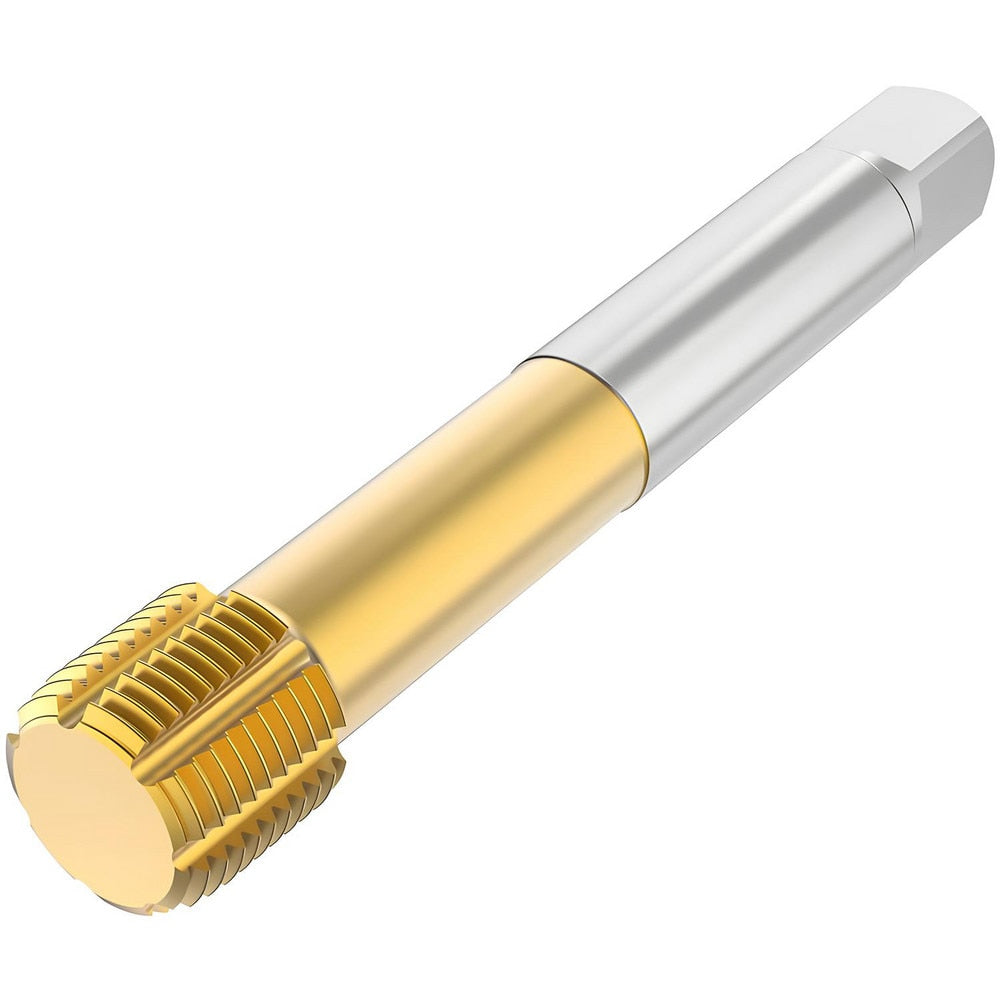

Brand: Seco / Part #: 10139254
Item #: 99562548
Brand: Seco
Model #: 10139254
Product Specifications
| Thread Size (Inch) | G 3/8-19 |
| Overall Length (mm) | 100.0000 |
| Chamfer | Modified Bottoming |
| Coating/Finish | TN |
| Thread Pitch (mm) | 1.34 |
| Thread Standard | G |
| Thread Direction | Right Hand |
| Material | HSS-E |
| Thread Length (mm) | 15.00 |
| Thread Depth (mm) | 15.00 |
| Thread Depth | 15.0000 |
| Shank Diameter (mm) | 11.0000 |
| Neck Length | 56.00 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Steel |
| Application | Industrial |
| Series | T33 |
| Tap Type | Thread Forming |
| Tapping Depth (mm) | 71.00 |
| Shank Length (mm) | 29.000 |
| Threads per Inch | 19 |
| Class Of Fit | NORMAL-X |
| Coolant Through | No |
