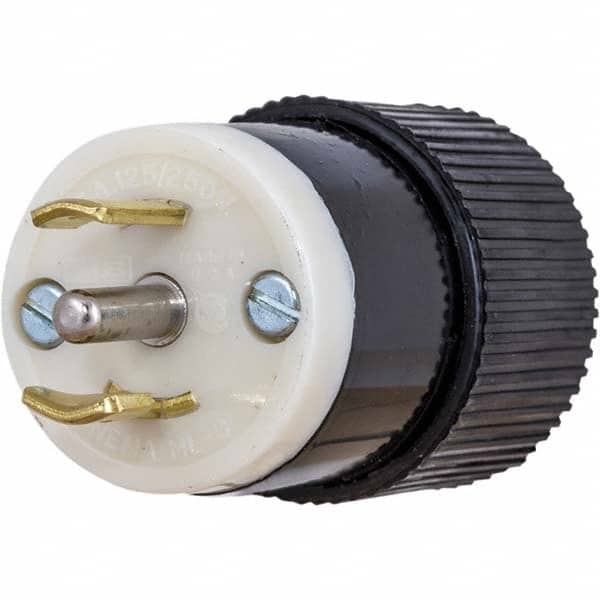

Bryant Electric - Twist Lock Plugs & Connectors Connector Type: Plug Grade: Industrial
Item #: 10091759
Brand: Bryant Electric
Model #: 7485NP
Product Specifications
Twist Lock Plugs & Connectors; Connector Type: Plug ; Grade: Industrial ; NEMA Configuration: ML-3P ; Amperage: 15 ; Voltage: 125/250 V ; Number of Poles: 3
| Connector Type | Plug |
| Grade | Industrial |
| NEMA Configuration | ML-3P |
| Amperage | 15 |
| Voltage | 125/250 V |
| Number of Poles | 3 |
| Number of Wires | 3 |
| Color | Black/White |
| Resistance Features | Impact Resistance |
| Maximum Cord Diameter (Decimal Inch) | 0.6300 |
| Maximum Cord Diameter (mm) | 16 |
| Minimum Cord Diameter (mm) | 7.11 |
| Minimum Cord Diameter (Decimal Inch) | 0.2800 |
| Number of Phases | 1 |
| Grounding Style | Ungrounded |
| Material | Composite |
| Standards Met | UL Listed; CSA Certified |
