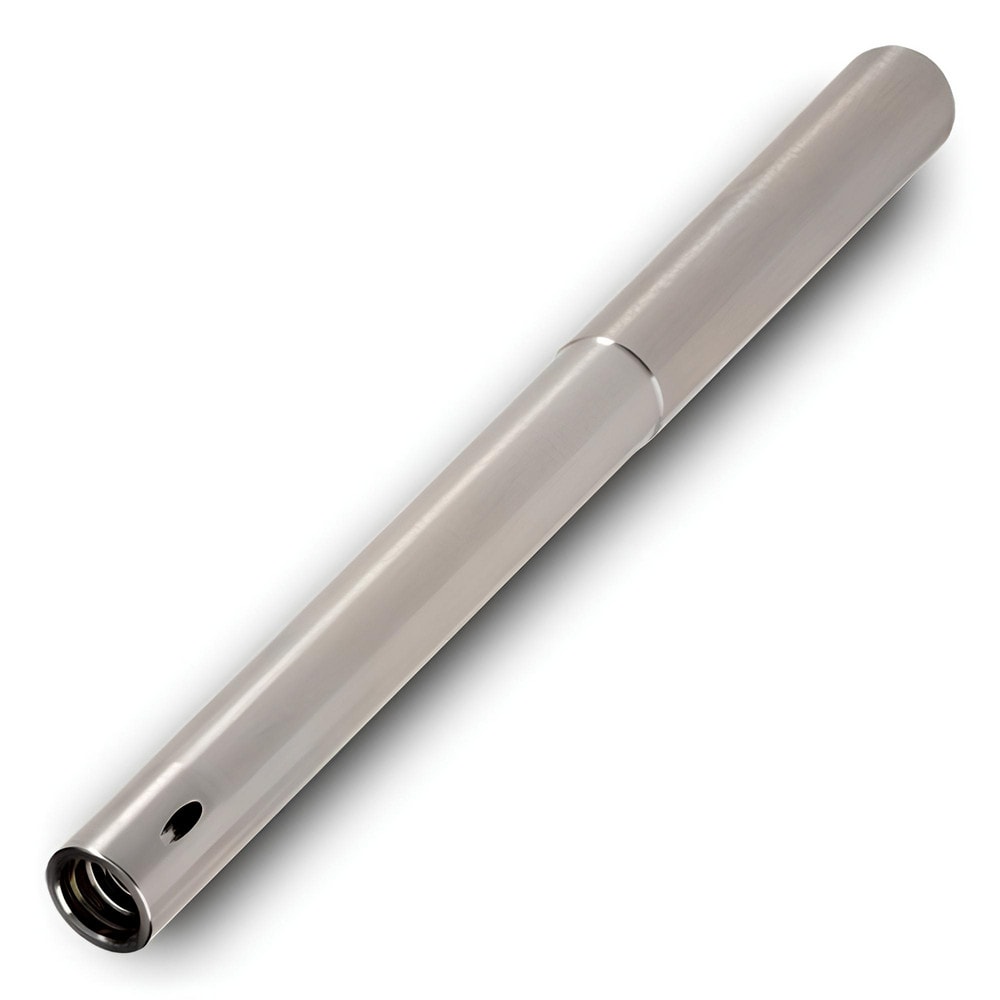

Brand: Ingersoll Cutting Tools / Part #: 4543018
Item #: 80875651
Brand: Ingersoll Cutting Tools
Model #: 4543018
Product Specifications
| Projection (mm) | 80.000 |
| Overall Length (mm) | 130.0000 |
| Neck Diameter (mm) | 18.300 |
| Neck Thread Size | T12 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 20.0000 |
| Nose Diameter (Mm) ( - 2 Decimals) | 18.30 |
| Toolholder Style | S*T*HA |
| Tool Material | Heavy Metal |
| Series | S*T*HA |
| Tip Connection Size | T12 |
| Tool Application | Chamfering; Milling |
| Tool Performance | General Purpose |
| For Use With | Milling Tips |
| Weldon Flat | No |
| Effective Length (mm) | 77.00 |
| Extension Length (mm) | 80.00 |
| Shank Shape | Round |
| Thread Size Connection to Tip | T12 |
| Manufacturers Catalog Number | S020T12HA080 |
| Type | "T" Style Thread Connection |
| Coolant Through | Yes |
