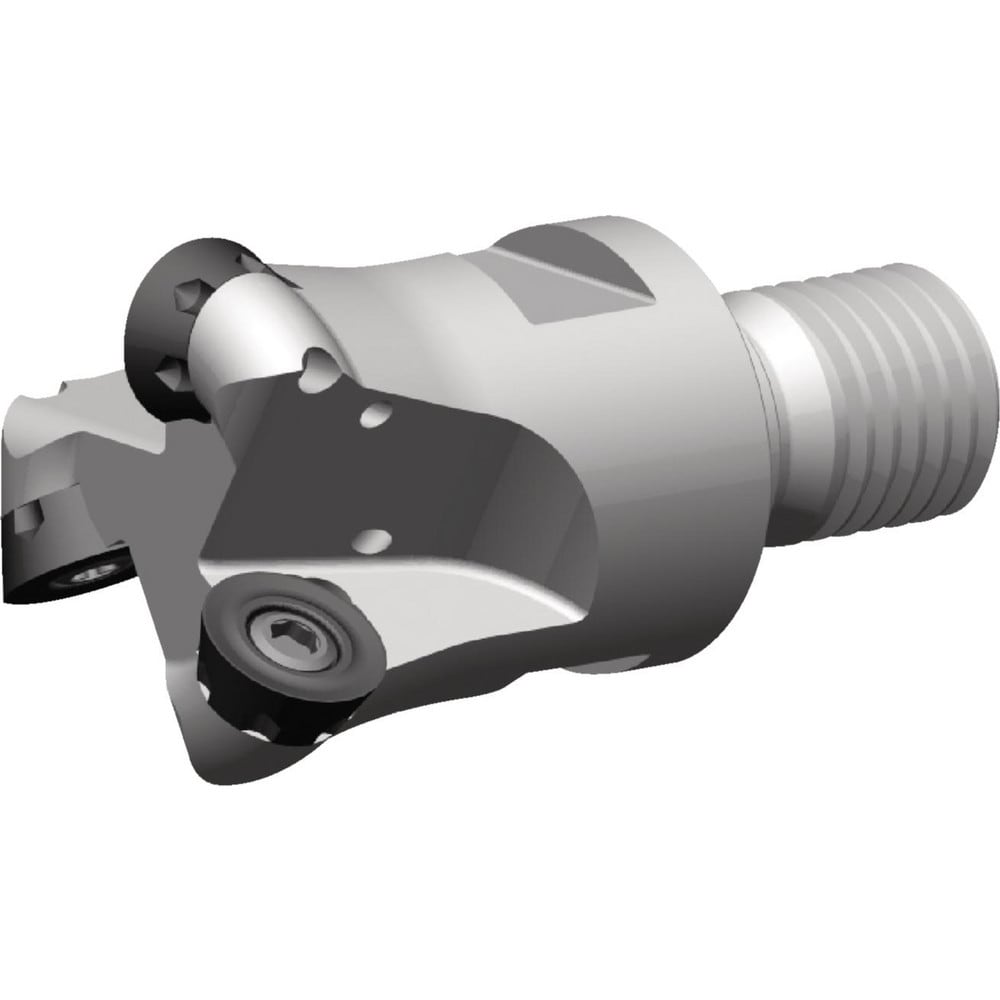

Brand: Widia / Part #: 2021374
Item #: 99734410
Brand: Widia
Model #: 2021374
Product Specifications
| Minimum Cutting Diameter (mm) | 12.00 |
| Maximum Cutting Diameter (mm) | 24.00 |
| Maximum Depth of Cut (mm) | 6.00 |
| Toolholder Style | M100 |
| Shank Type | Modular Connection |
| Shank Diameter | 0.8661 |
| Maximum Ramping Angle | 10 |
| Compatible Insert Style | RD.. |
| Insert Holding Method | Screw |
| Compatible Insert Size Code | 1204 |
| Number Of Cutter Inserts | 2 |
| Overall Length (mm) | 52.0000 |
| Series | M100 |
| Flute Type | Straight |
| Maximum Rpm | 23000.000 |
| Shank Length (mm) | 22.000 |
| Functional Length (mm) | 30.00 |
| Head Length (mm) | 30.00 |
| Insert Diameter (mm) | 12.000 |
| Tool Application | Pocketing; Milling; Ramping; Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Number Of Flutes | 2 |
| Coolant Through | Yes |
