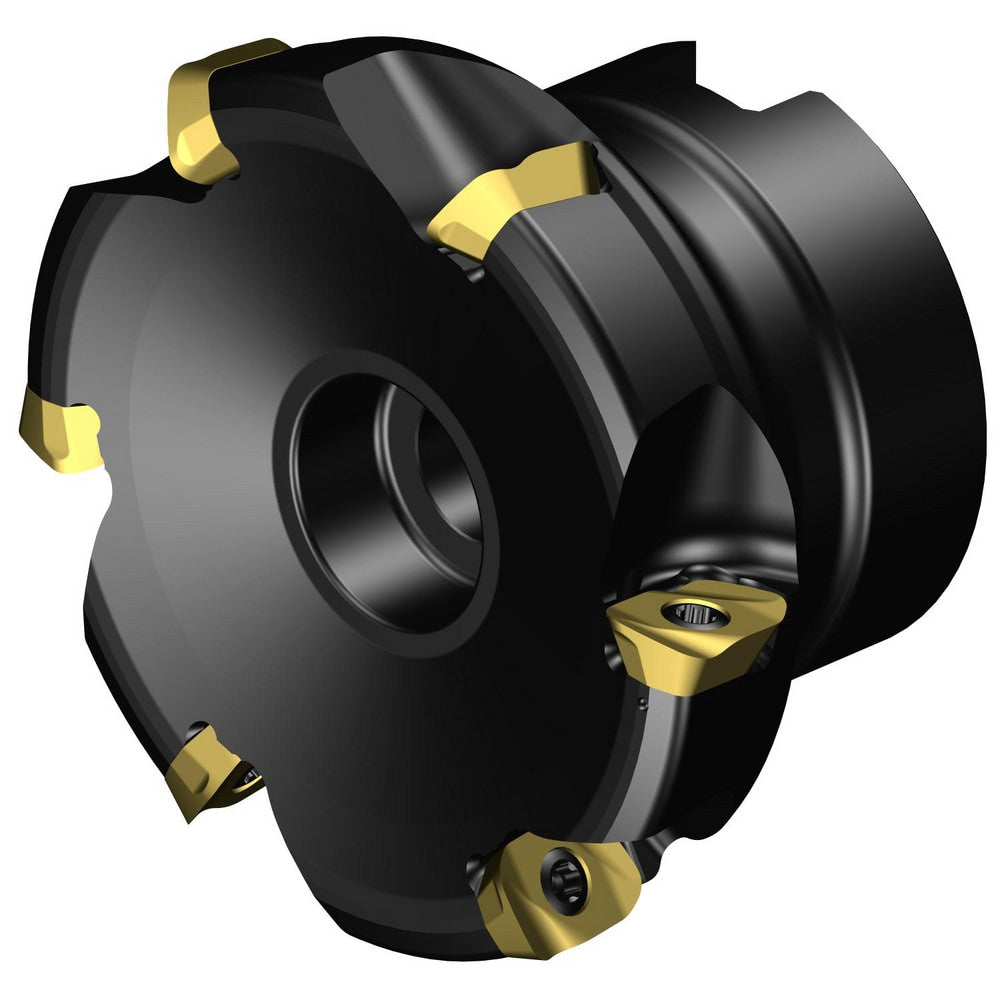

Brand: Sandvik Coromant / Part #: 8352811
Item #: 67613778
Brand: Sandvik Coromant
Model #: 8352811
Product Specifications
| Cutting Diameter (mm) | 52.35 |
| Cutting Diameter (Decimal Inch) | 2.0610 |
| Maximum Depth of Cut (Decimal Inch) | 0.2087 |
| Maximum Depth of Cut (mm) | 5.30 |
| Shank Diameter (mm) | 22.0000 |
| Compatible Insert Size Code | 0804 |
| Maximum Ramping Angle | 1.5 |
| Cutter Style | MH20-R..Qxx |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Series | CoroMill MH38 |
| Maximum RPM | 13200.000 |
| Tool Application | Face Milling |
| Tool Performance | High Performance |
| Complete Insert Compatibility | CoroMill MH20 -0804 (MH20-080425) |
| Manufacturers Catalog Number | MH20-R063Q22-08M |
| Shank Diameter (Decimal Inch) | 0.8661 |
| Number Of Cutter Inserts | 6 |
| Coolant Through | Yes |
