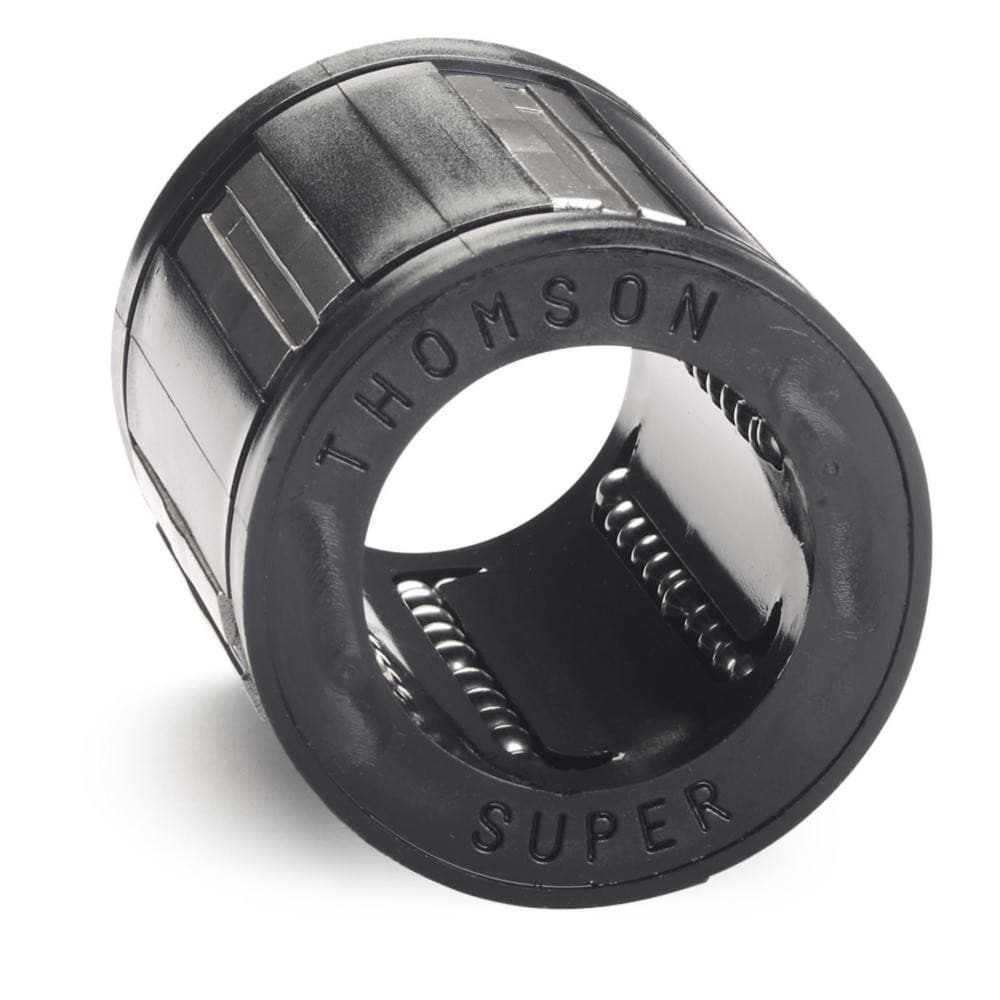

Linear Bearings; Bearing Type: Super Ball Bushing; Bearing Style: Closed; Inside Diameter (Decimal Inch): 0.6250; Bore Type: Round; Alignment Style: Self-Aligning; Open Number of Ball Circuits.: 4; Closed Dynamic Load Capacity: 450.000; Overall Length (De
Item #: 35528041
Brand: Thomson Industries
Model #: SUPER10
Product Specifications
| Bearing Type | Super Ball Bushing |
| Bearing Style | Closed |
| Inside Diameter (Decimal Inch) | 0.6250 |
| Outside Diameter (Decimal Inch - 4 Decimals) | 1.1255 |
| Outside Diameter (mm) | 28.58 |
| Bore Diameter (mm) | 15.87 |
| Bore Diameter (Decimal Inch) | 0.6250 |
| Dynamic Load Capacity (Lb.) | 450 |
| Material | Engineered Polymer (Retainer) |
| Bore Type | Round |
| Alignment Style | Self |
| Open Number of Ball Circuits. | 4 |
| Closed Dynamic Load Capacity | 450 |
| Overall Length (Decimal Inch) | 1.4800 |
| Open Dynamic Load Capacity (Lb.) | 320 |
| Minimum Slot Width | 0.4100 |
| Closed Number of Ball Circuits | 5 |
| Distance Between Retain Ring Grooves | 1.105;1.095 |
| Retain Ring Groove Minimum | 0.0560 |
| Nominal Size (Decimal Inch) | 1.5000 |
| UNSPSC Code | 31171506 |
| Bearing Type | Super Ball Bushing |
| Bearing Style | Closed |
| Inside Diameter (Decimal Inch) | 0.6250 |
| Outside Diameter (Decimal Inch - 4 Decimals) | 1.1255 |
| Outside Diameter (mm) | 28.58 |
| Bore Diameter (mm) | 15.87 |
| Bore Diameter (Decimal Inch) | 0.6250 |
| Dynamic Load Capacity (Lb.) | 450 |
| Material | Engineered Polymer (Retainer) |
| Bore Type | Round |
| Alignment Style | Self |
| Open Number of Ball Circuits. | 4 |
| Closed Dynamic Load Capacity | 450 |
| Overall Length (Decimal Inch) | 1.4800 |
| Open Dynamic Load Capacity (Lb.) | 320 |
| Minimum Slot Width | 0.4100 |
| Closed Number of Ball Circuits | 5 |
| Distance Between Retain Ring Grooves | 1.105;1.095 |
| Retain Ring Groove Minimum | 0.0560 |
| Nominal Size (Decimal Inch) | 1.5000 |
| UNSPSC Code | 31171506 |
| MSC Part # | 35528041 |
| Mfr Part # | SUPER10 |
| Country of Origin Country of Origin is subject to change | Mexico |
