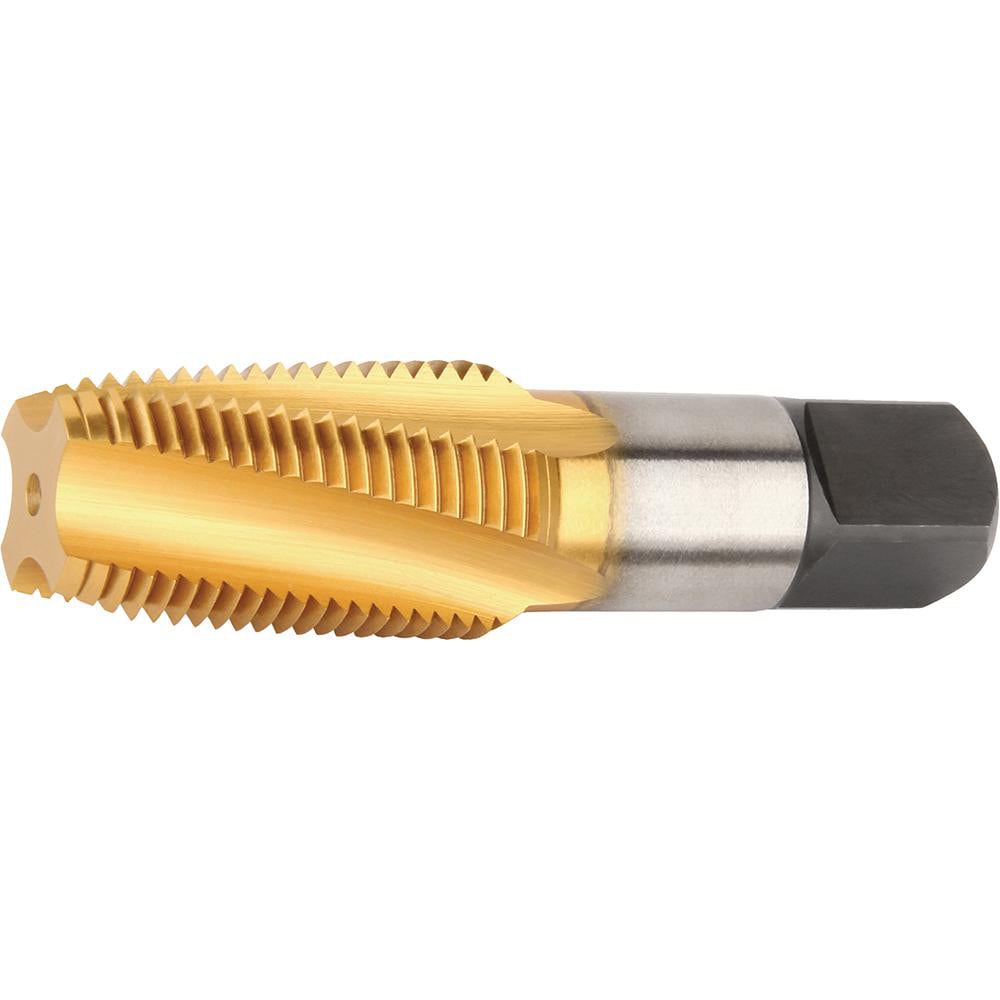

Brand: Widia / Part #: 5629600
Item #: 83144360
Brand: Widia
Model #: 5629600
Product Specifications
| Thread Size (Inch) | 1/16-27 |
| Overall Length (Decimal Inch) | 2.1300 |
| Chamfer | Semi-Bottoming |
| Thread Standard | NPT |
| Thread Pitch (Decimal Inch) | 0.0370 |
| Flute Direction | Right Hand |
| Helix Angle | 15 |
| Material | High Speed Steel |
| Thread Length (Decimal Inch) | 0.6880 |
| Thread Depth (Decimal Inch) | 1.0650 |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Square Length (Decimal Inch) | 0.3750 |
| Square Size (Decimal Inch) | 0.2000 |
| Projection (Decimal Inch) | 1.0650 |
| Application | Tapping |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Series | VTSFT |
| Threads per Inch | 27.0 |
| Coating/Finish | TiN |
| Number Of Flutes | 4 |
