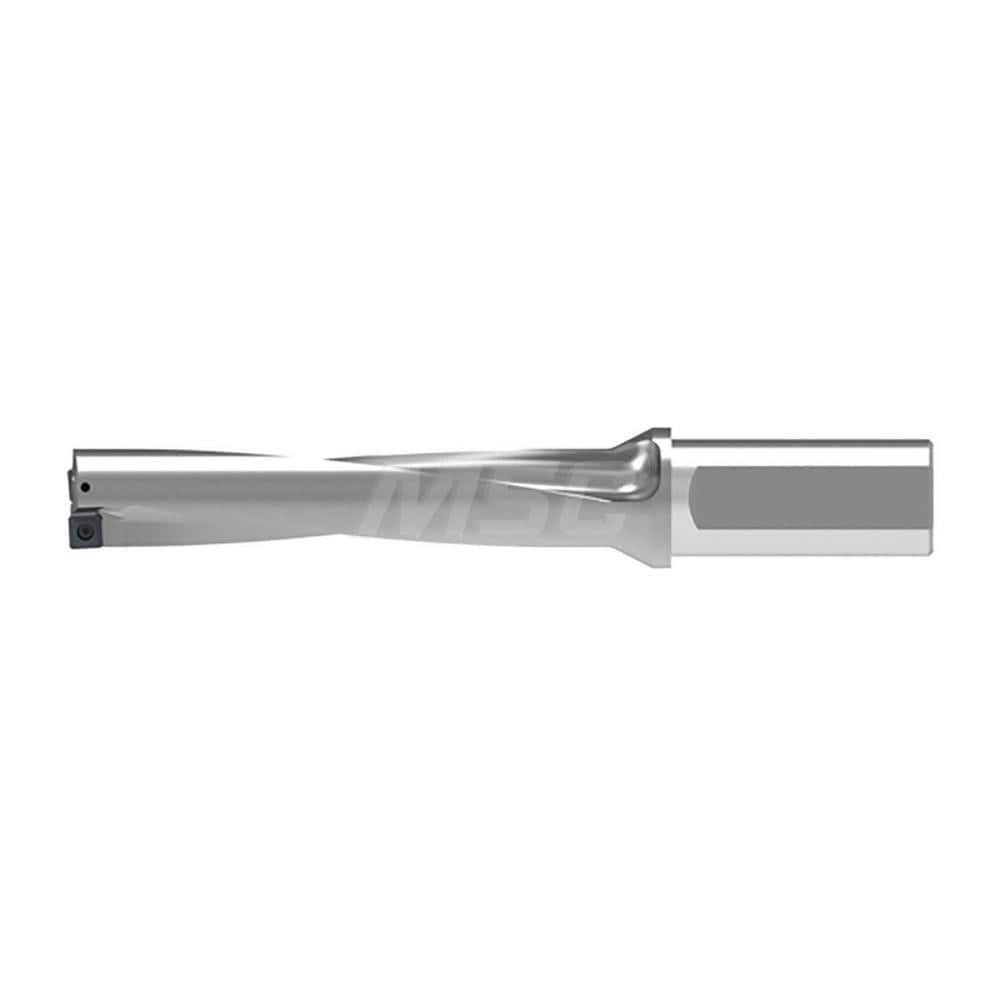

Brand: Komet / Part #: 1587537302
Item #: 11627486
Brand: Komet
Model #: 1587537302
Product Specifications
| Drill Style | KUBP |
| Drill Diameter (Decimal Inch) | 1.4690 |
| Drill Diameter (Inch) | 1-15/32 |
| Maximum Drill Depth (Decimal Inch) | 7.4800 |
| Shank Type | Weldon Flat |
| Shank Diameter (Inch) | 1-1/2 |
| Drill Diameter Range (Decimal Inch) | 1.3000 to 1.5000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 7.0000 to 10.0000 |
| Tool Material | Steel |
| Compatible Insert Style | SOGX |
| Drill Depth by Diameter Ratio | 5xD |
| Series | 15875 |
| Flute Length (Decimal Inch) | 7.4800 |
| Body Length (Decimal Inch) | 8.5430 |
| Shank Length (Decimal Inch) | 3.7500 |
| Collar Diameter (Decimal Inch) | 1.9700 |
| Extension From Holder (Inch) | 8.5430 |
| Coolant Through | Yes |
