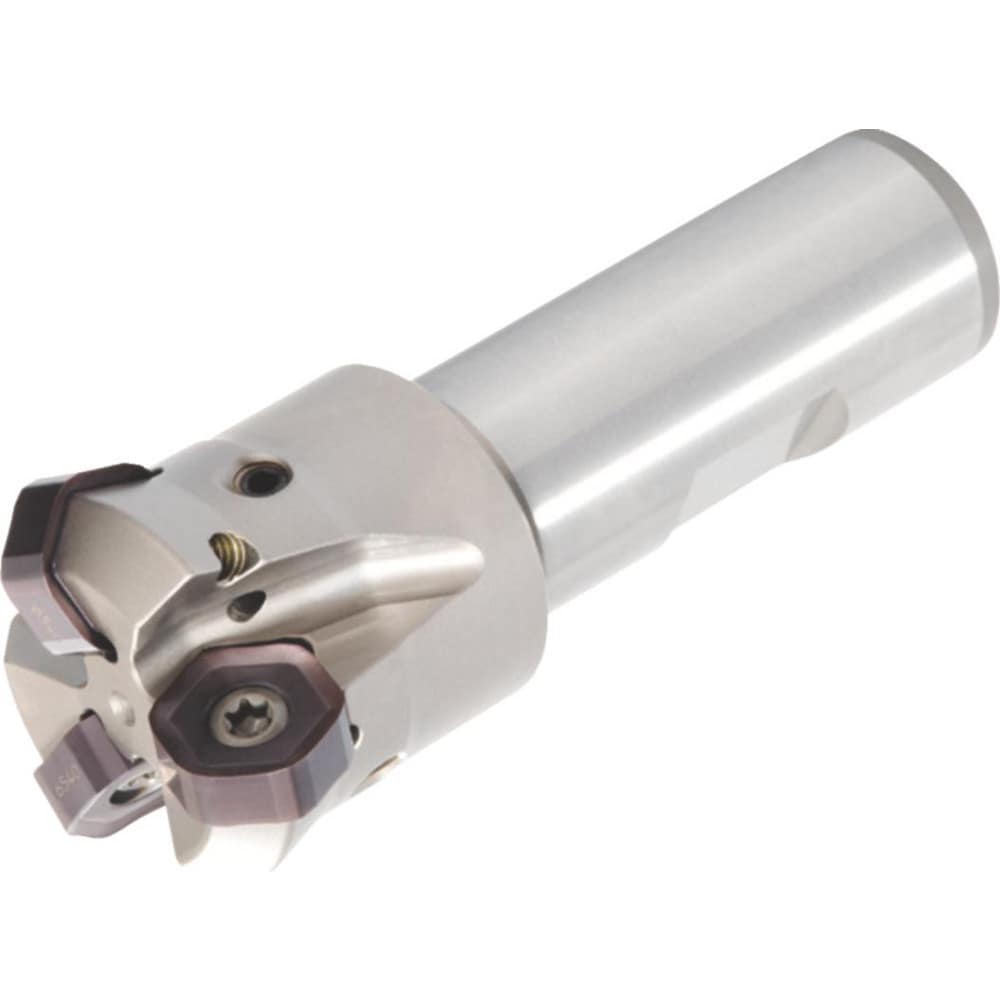

Brand: Widia / Part #: 3953896
Item #: 16659245
Brand: Widia
Model #: 3953896
Product Specifications
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Minimum Cutting Diameter (Inch) | 1-1/4 |
| Minimum Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Cutting Diameter (Decimal Inch) | 1.5933 |
| Lead Angle | 45 |
| Maximum Depth of Cut (Decimal Inch) | 0.1378 |
| Compatible Insert Size Code | HN..0704 |
| Shank Type | Weldon Flat |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Taper Size | None |
| Number Of Cutter Inserts | 4 |
| Cutting Direction | Right Hand |
| Insert Style | HN.. |
| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 3.7835 |
| Overall Height (Decimal Inch) | 3.7835 |
| Series | M1200 Mini |
| Toolholder Style | M1200 |
| Functional Length (Decimal Inch) | 1.5000 |
| Maximum Body Diameter (Decimal Inch) | 1.4820 |
| Maximum RPM | 17700.000 |
| Modular Connection Size | None |
| Tool Application | Chamfering; Facing; Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Head Length (Decimal Inch) | 1.5000 |
| Head Length (Inch) | 1-1/2 |
| Shank Length (Decimal Inch) | 2.2835 |
| Coolant Hole Diameter (Decimal Inch) | 0.1969 |
| Complete Insert Compatibility | HN..0704 |
| ISO Number | M1200D125Z04W100HN07 |
| Rake | Negative |
| Number Of Flutes | 4 |
| End Mill Material | Steel |
| Coolant Through | Yes |
| Radial Rake Angle (Degrees) | -1.7 |
