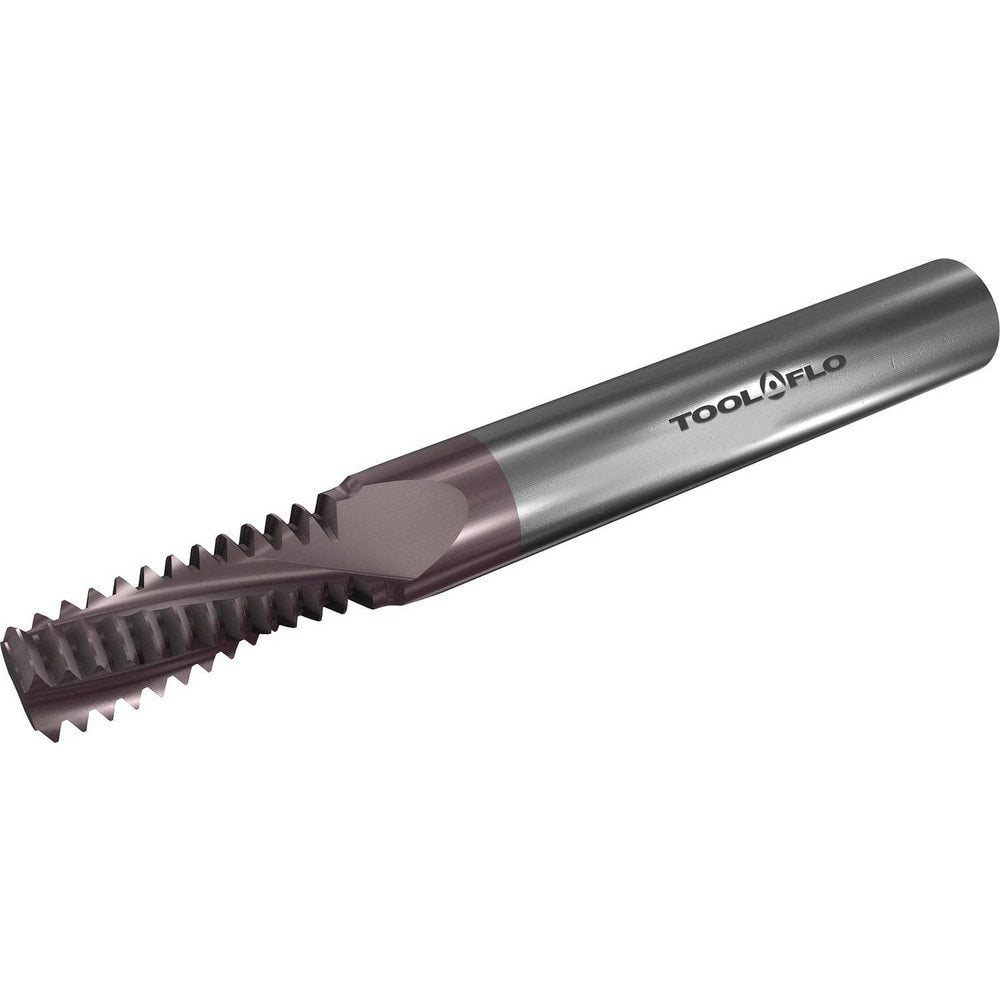

Helical Flute Thread Mill: 9/16-18 - 5/8-181-1/8-18 - 1-5/8-18, Internal, 4 Flute, 0.5000" Shank Dia, Carbide
Item #: 02066710
Brand: Tool-Flo
Model #: 1271251
Product Specifications
| Material | Carbide |
| Thread Size (Inch) | 9/16-18 - 5/8-18;1-1/8-18 - 1-5/8-18 |
| Thread Type | Internal |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Cutting Diameter (Decimal Inch) | 0.4450 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.0300 |
| Overall Length (Decimal Inch) | 4.0000 |
| Thread Standard | UN |
| Flute Direction | Right Hand |
| Material Grade | Micrograin |
| Number Of Flutes | 4 |
| Coating/Finish | AlTiN |
| Coolant Through | Yes |
| Teeth Per Inch | 18 |
| UNSPSC Code | 23242117 |
