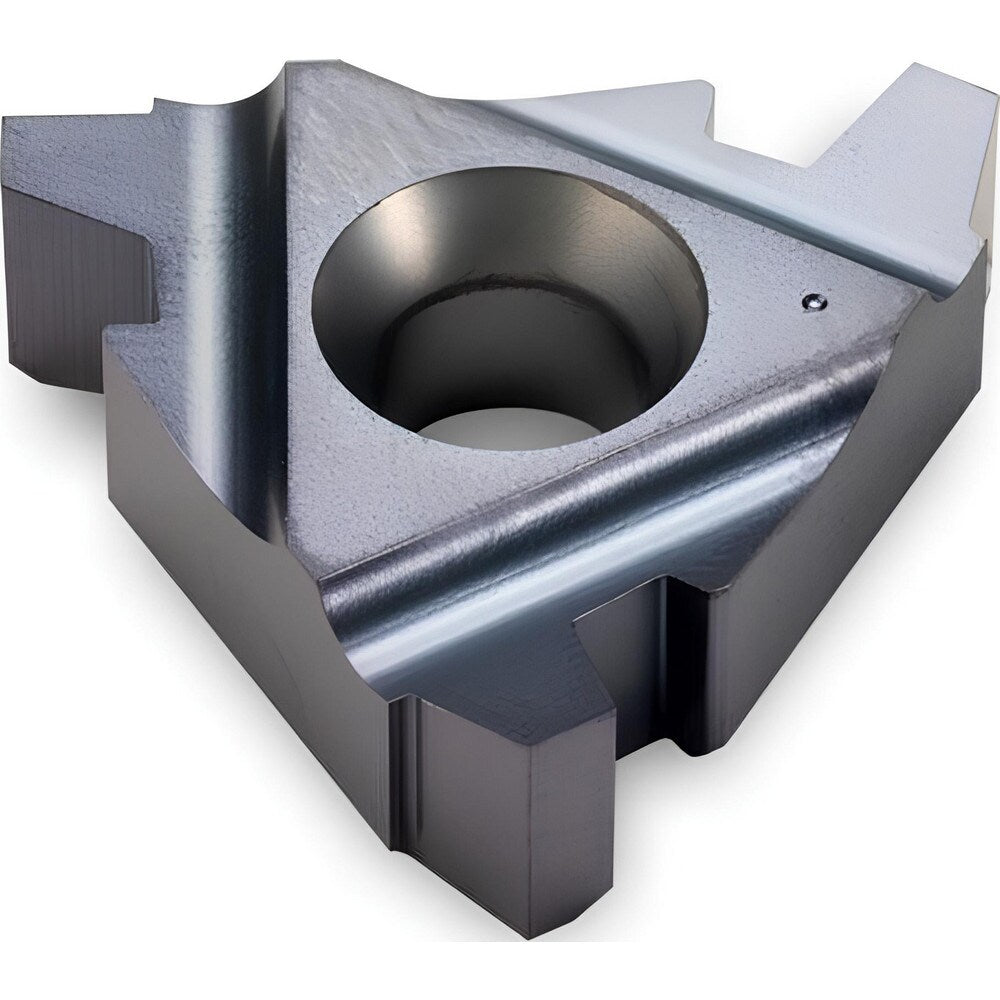

Brand: Ingersoll Cutting Tools / Part #: 5901144
Item #: 06516850
Brand: Ingersoll Cutting Tools
Model #: 5901144
Product Specifications
| Insert Style | 16IR |
| Insert Size Code | 16 |
| Insert Material | Carbide |
| Manufacturer Grade | P30 |
| Thread Type | Internal |
| Pitch (mm) | 1.59 |
| Thread Standard | Stub Acme |
| Insert Hand | Right Hand |
| Included Angle | 29.00 |
| Chipbreaker | None |
| Series | STUB ACME Regular Type |
| Inscribed Circle (Inch) | 3/8 |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Ansi Code | 16IR16STACME |
| Iso Code | 16IR16STACME |
| Cutting Edge to Theoretical Edge Length (Decimal Inch) | 0.043 |
| Face of Insert to Tip Centerline (Decimal Inch) | 0.039 |
| Number of Teeth Per Side | 1 |
| Cutting Direction | Right Hand |
| Coating Classification | Uncoated |
| Thickness (Decimal Inch - 4 Decimals) | 0.1430 |
| Coating/Finish | Uncoated |
