Brand: Widia / Part #: 2022589
Item #: 99731663
Brand: Widia
Model #: 2022589
Product Specifications
| Thread Type | External |
| Hand of Holder | Right Hand |
| Compatible Insert Size Code | 5 |
| Shank Width/Diameter (mm) | 32.00 |
| Toolholder Style | AL |
| Insert Compatibility | LT27ER |
| Coolant Entry Style Code | 0-Without Coolant |
| Insert Holding Method | Screw |
| Shank Height (mm) | 32.00 |
| Shank Length (mm) | 136.000 |
| Overall Length (mm) | 176.0000 |
| Series | LT |
| Multi-use Tool | No |

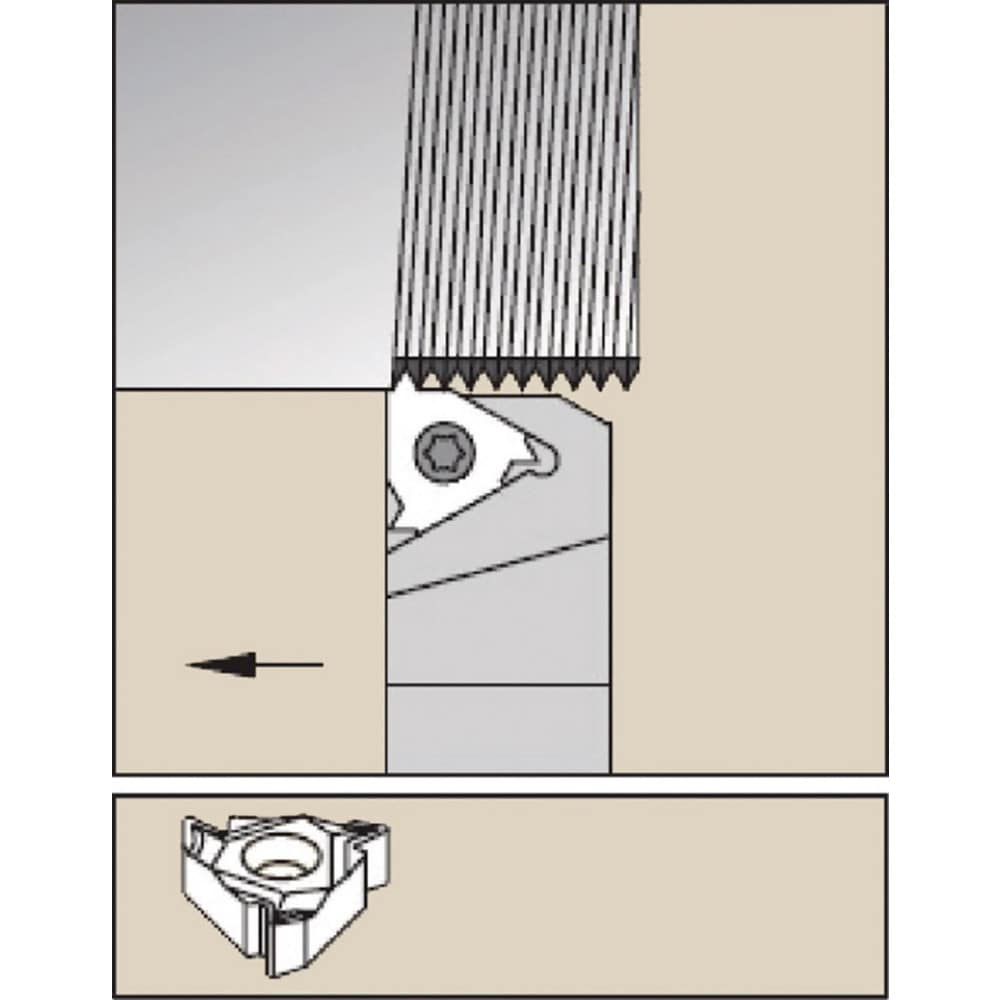

| Cutting Tool Application | Threading |
| Head Length (mm) | 40.00 |
| Maximum Depth of Cut (mm) | 6.35 |
| Adjustable Overhang | Yes |
| Back of Bar to Cutting Edge (mm) | 32.00 |
| Center to Cutting Edge (mm) | 16.00 |
| Insert Inscribed Circle (Decimal Inch) | 0.6250 |
| Insert Inscribed Circle (Inch) | 5/8 |
| Insert Inscribed Circle (mm) | 15.88 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M; N |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | AL325R |
| Style | LT |
| Coolant Through | No |
