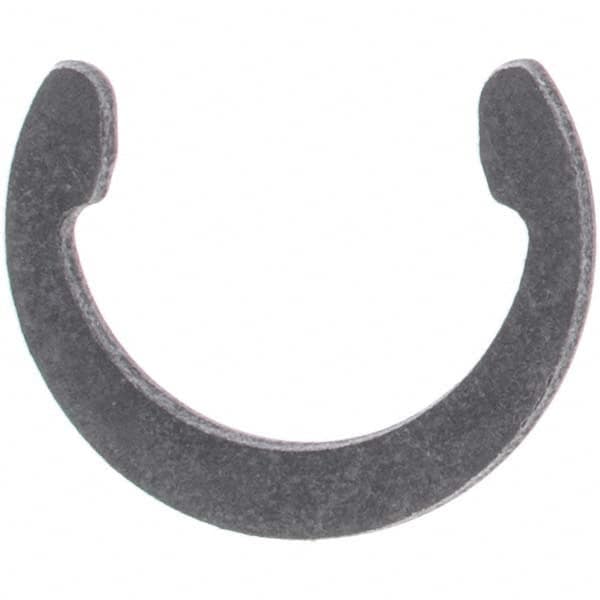

Rotor Clip - 1-3/8" Shaft Diam, 1.237" Groove Diam, Spring Steel External C Style Retaining Ring
Item #: 99622037
Brand: Rotor Clip
Model #: C-137ST PA
Product Specifications
| Type | C Style |
| System of Measurement | Inch |
| Shaft Diameter (Inch) | 1-3/8 |
| Groove Diameter (Decimal Inch) | 1.2370 |
| Free Diameter (Decimal Inch) | 1.2200 |
| Free Outside Diameter (Decimal Inch) | 1.5550 |
| Military Specification | Does Not Meet Military Specifications |
| Material | Spring Steel |
| Finish/Coating | Phosphate |
| Material Grade | 1060-1090 |
| Groove Width (Decimal Inch) | 0.0560 |
| Groove Depth (Decimal Inch) | 0.0690 |
| Ring Thickness (Decimal Inch) | 0.0500 |
| Minimum Shaft Diameter (Decimal Inch) | 1.3750 |
| Maximum Shaft Diameter (Decimal Inch) | 1.3750 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0040 to 0.0050 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.004 |
| Free Diameter Tolerance (Decimal Inch) | -0.008 to 0.008 |
| Ring Thickness Tolerance (Decimal Inch) | -0.002 to 0.002 |
| Ring Thickness Tol. (Plated Ring) (Decimal Inch) | -0.002 to 0.004 |
