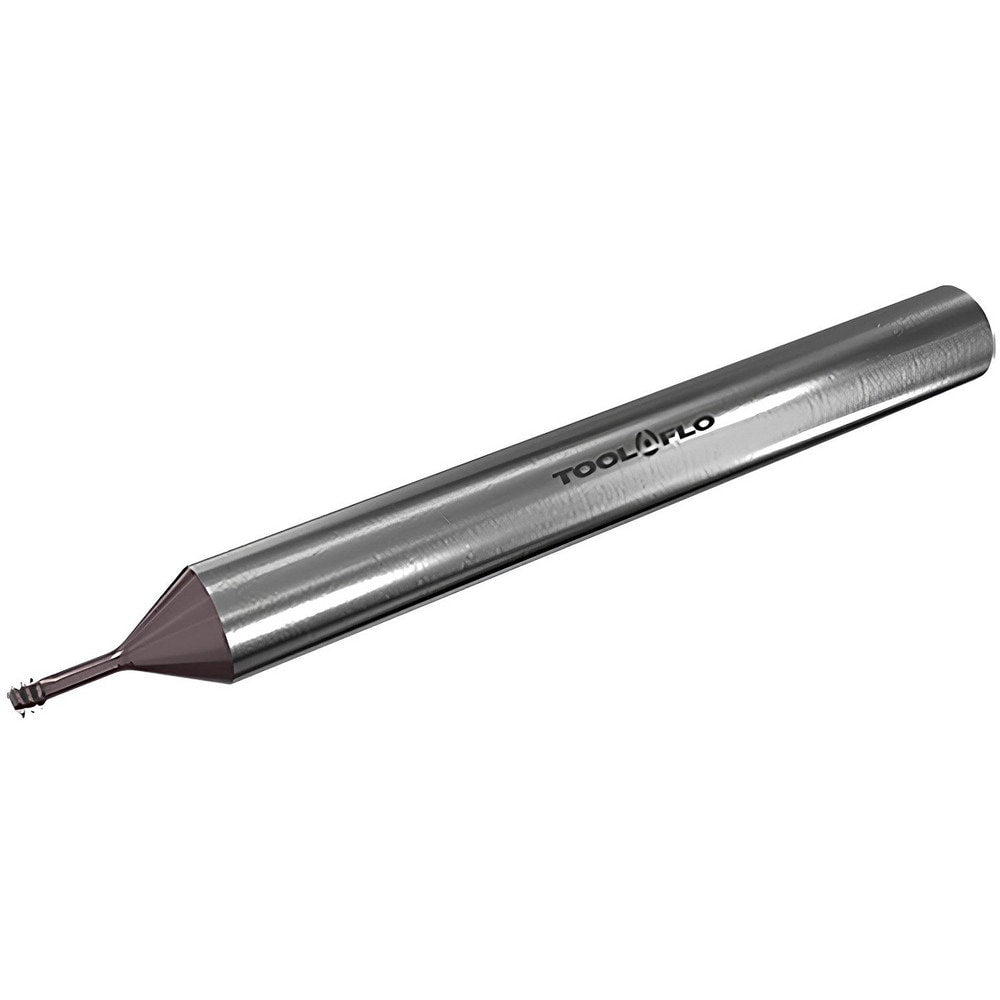

Helical Flute Thread Mill: #8-32 - #10-32, Internal, 3 Flute, 6.00 mm Shank Dia, Carbide
Item #: 02248128
Brand: Tool-Flo
Model #: 1271427
Product Specifications
| Material | Carbide |
| Thread Size (Inch) | #8-32 - #10-32 |
| Thread Type | Internal |
| Shank Diameter (mm) | 6.00 |
| Cutting Diameter (mm) | 3.20 |
| Length of Cut (mm) | 9.50 |
| Overall Length (mm) | 58.00 |
| Thread Standard | UN |
| Flute Direction | Right Hand |
| Material Grade | Micrograin |
| Number Of Flutes | 3 |
| Coating/Finish | AlTiN |
| Coolant Through | No |
| Teeth Per Inch | 32 |
| UNSPSC Code | 23242117 |
