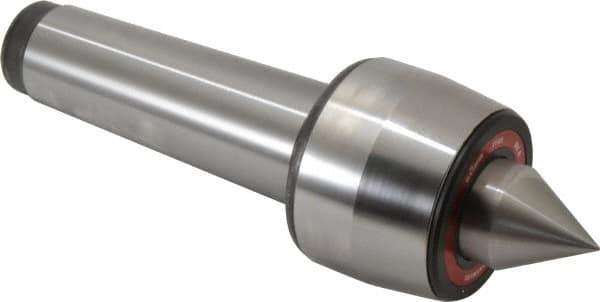

Rohm - MT6 Taper Shank, 4.134" Head Diam 2,500 Lb Capacity Live Center - 2,600 Max RPM, 3.217" Head Length, 1.9685" Point Diam, 2.264" Point Len, 7,700 Lb Max Workpc, 13.15" OAL, Standard Point
Item #: 99267239
Brand: Rohm
Model #: 43532
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT6 |
| Maximum Workpiece Weight (Lb.) | 7700.00 |
| Maximum Workpiece Weight (kg) | 3500.00 |
| Point Style | Standard |
| Point Diameter (mm) | 50.00 |
| Point Diameter (Decimal Inch) | 1.9685 |
| Point Length (mm) | 57.50 |
| Point Length (Decimal Inch) | 2.2640 |
| Accuracy (mm) | 0.0100 |
| Load Capacity (Lb.) | 2500.00 |
| Head Diameter (Decimal Inch) | 4.1340 |
| Head Length (Decimal Inch) | 3.2170 |
| Overall Length (Decimal Inch) | 13.1500 |
| Gage Line Diameter (mm) | 63.35 |
| Point to Gauge Line (mm) | 152.00 |
| Included Angle | 60.00 |
| Bearing Type | Triple Bearing |
| Maximum RPM | 2600 |
| Material | Tool Steel |
| Carbide-Tipped | No |
