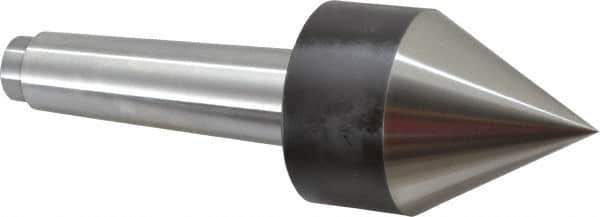

Riten - MT4 Taper Shank, Live Center - 2-1/2" Point Diam, 3-7/16" Point Len, 260 Lb Max Workpc, Pipe Nose Point
Item #: 99137275
Brand: Riten
Model #: 65254
Exact Tooling IR#: 04
Features and Benefits
Pipe nose points are used for for turning pipes, tubes, and parts with extra-large center holes.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT4 |
| Maximum Workpiece Weight (Lb.) | 260.00 |
| Point Style | Pipe Nose |
| Point Diameter (Inch) | 2-1/2 |
| Point Diameter (Decimal Inch) | 2.5000 |
| Point Length (Inch) | 3-7/16 |
| Accuracy (Decimal Inch) | 0.000300 |
| Point to Gauge Line (Inch) | 3-3/4 |
| Gage Line Clearance (Inch) | 5/16 |
| Material | Hardened Tool Steel |
| Carbide-Tipped | No |
