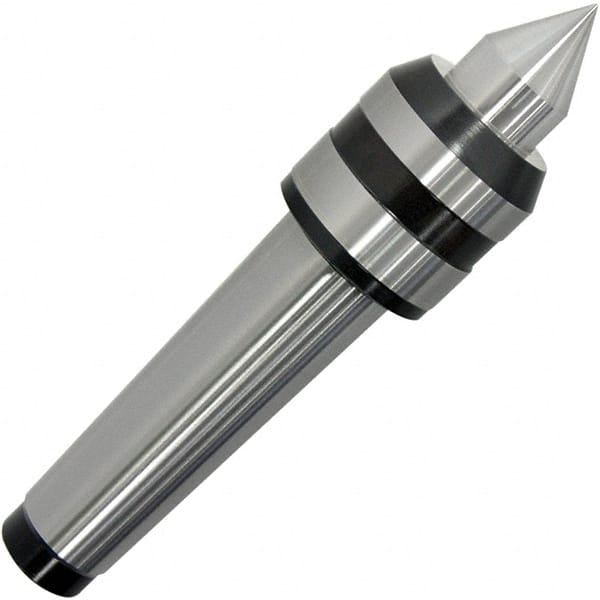

Accupro - Live Centers Shank Type: Morse Taper Taper Size: MT4
Item #: 99454217
Brand: Accupro
Model #:
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
Product Specifications
Live Centers; Shank Type: Morse Taper ; Taper Size: MT4 ; Maximum Workpiece Weight (Lb.): 881.85 ; Maximum Workpiece Weight (kg): 400.00 ; Point Style: Standard ; Point Diameter (mm): 25.00
| Shank Type | Morse Taper |
| Taper Size | MT4 |
| Maximum Workpiece Weight (Lb.) | 881.85 |
| Maximum Workpiece Weight (kg) | 400.00 |
| Point Style | Standard |
| Point Diameter (mm) | 25.00 |
| Point Length (mm) | 32.50 |
| Accuracy (mm) | 0.0030 |
| Load Capacity (Lb.) | 881.85 |
| Head Diameter (mm) | 44.50 |
| Head Length (Decimal Inch) | 1.7323 |
| Shank Length (Decimal Inch) | 4.2520 |
| Overall Length (mm) | 184.50 |
| Point to Gauge Line (mm) | 81.80 |
| Included Angle | 60.00 |
| Maximum RPM | 5000 |
| Carbide-Tipped | No |
