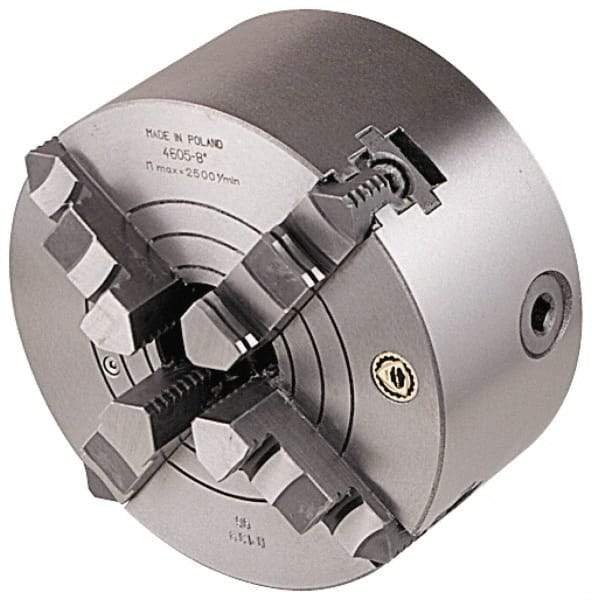

Bison - 4 Jaws, 12" Diam, Combination Independent & Self Centering Manual Lathe Chuck - Plain Back Mount Spindle, Reversible, 1,500 Max RPM, 4.05" Through Hole Diam, Cast Iron
Item #: 98846405
Brand: Bison
Model #: 7-848-1200
Exact Tooling IR#: 04
Features and Benefits
Combination independent and self-centering chucks allow each jaw to be operated independently or move simultaneously as a self-centering scroll chuck.
Cast iron also called semi-steel is the industry standard for chuck body material.
| Product Specifications | |
|---|---|
| Chuck Type | Combination Independent & Self-Centering |
| Nominal Chuck Size | 12 |
| Number of Jaws | 4 |
| Mount | Plain Back |
| Through-Hole Diameter (Decimal Inch) | 4.0500 |
| Body Material | Cast Iron (Semi-Steel) |
| Reversible Jaws | Reversible Jaws |
| Number of Jaw Pieces | One-Piece |
| Chuck Diameter (Inch) | 12-1/2 |
| Minimum Jaw Capacity (Decimal Inch) | 0.3900 |
| Maximum Jaw Capacity (Inch) | 12-1/2 |
| Adjustable | No |
| Body Length (Decimal Inch) | 4.6063 |
| Maximum RPM | 1500 |
| Includes | Set of Hard Solid Reversible Jaws; Set of Mounting Screws; Wrench |
