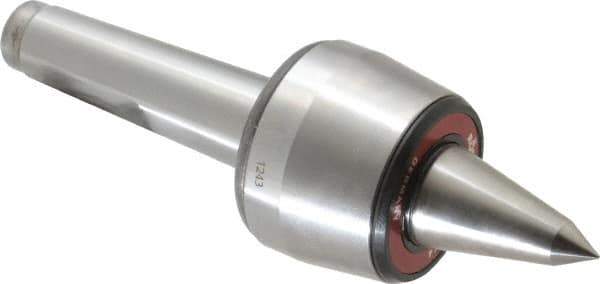

Rohm - MT4 Taper Shank, 2.755" Head Diam 500 Lb Capacity Live Center - 3,800 Max RPM, 2-3/32" Head Length, 1.2598" Point Diam, 2.087" Point Len, 1,100 Lb Max Workpc, 8.583" OAL, Long Point
Item #: 98351752
Brand: Rohm
Model #: 58671
Exact Tooling IR#: 04
Features and Benefits
Long points are used for shaft work, parts with large diameters and where tool clearance is a priority.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT4 |
| Maximum Workpiece Weight (Lb.) | 1100.00 |
| Maximum Workpiece Weight (kg) | 500.00 |
| Point Style | Long |
| Point Diameter (mm) | 32.00 |
| Point Diameter (Decimal Inch) | 1.2598 |
| Point Length (mm) | 53.00 |
| Point Length (Decimal Inch) | 2.0870 |
| Accuracy (mm) | 0.0050 |
| Load Capacity (Lb.) | 500.00 |
| Head Diameter (Decimal Inch) | 2.7550 |
| Head Length (Decimal Inch) | 2.0940 |
| Overall Length (Decimal Inch) | 8.5830 |
| Gage Line Diameter (mm) | 31.27 |
| Point to Gauge Line (mm) | 114.50 |
| Included Angle | 60.00 |
| Bearing Type | Triple Bearing |
| Maximum RPM | 3800 |
| Material | Tool Steel |
| Carbide-Tipped | No |
