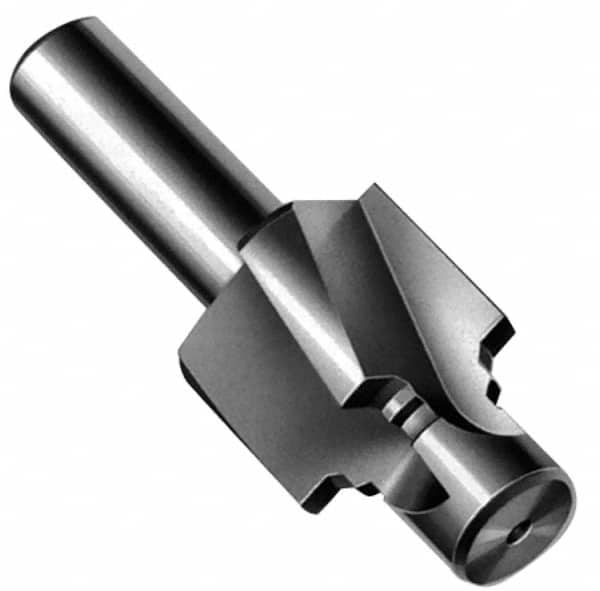

Made in USA - 1-5/16 - 12" Port, 1.965" Spotface Diam, 1" Tube Outside Diam, Plain Pilot, Straight Shank, High Speed Steel Porting Tool
Item #: 00389387
Brand: Made in USA
Model #:
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Port Standard Designation | AND 10050; MS 33649 |
| Pilot Type | Plain |
| Port Thread Size (Inch) | 1-5/16 - 12 |
| Tool Material | High Speed Steel |
| Tube Outside Diameter Compatibility (Inch) | 1 |
| Minimum Pilot Diameter (Decimal Inch) | 1.2250 (AND Spec); 1.2360 (MS Spec) |
| Spotface Diameter (Decimal Inch) | 1.9650 |
| ShankType | Straight |
| Identification Groove | No |
| Workpiece Compatibility | Tubes |
| Finish/Coating | Bright |
| Overall Length (Inch) | 4-5/16 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Thread Type | Straight |
| Number of Flutes | 4 |
| Material Application | Abrasive Materials; Ferrous Metals; Non-Ferrous Metals |
