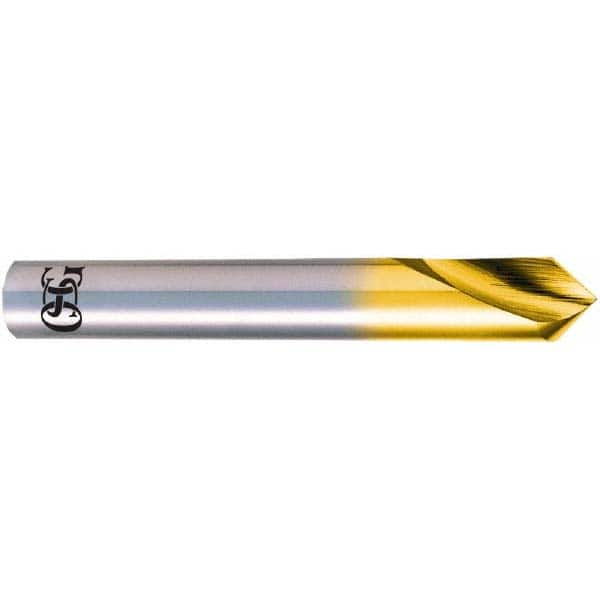

OSG - 12mm Body Diam, 60°, 108mm OAL, High Speed Steel Spotting Drill
Item #: 48886592
Brand: OSG
Model #: 63712
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Body Diameter (mm) | 12.00 |
| Body Diameter (Inch) | 0.4724 |
| Body Diameter (Decimal Inch) | 0.4724 |
| Drill Point Angle | 60 |
| Spotting Drill Material | High Speed Steel |
| Spotting Drill Finish/Coating | TiN |
| Overall Length (mm) | 108.00 |
| Flute Length (mm) | 36.00 |
| Shank Diameter (mm) | 12.0000 |
| Number of Flutes | 2 |
| Cutting Direction | Right Hand |
| Series/List | 1200 |
